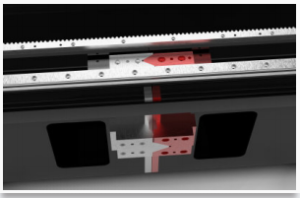

1 Scalable Modular Bed Design
Featuring a modular segmented bed architecture, the machine length can be customized and extended to meet your specific production needs. This “building block” design allows for future upgrades and on-site extensions without the need for a full machine replacement, protecting your long-term investment.

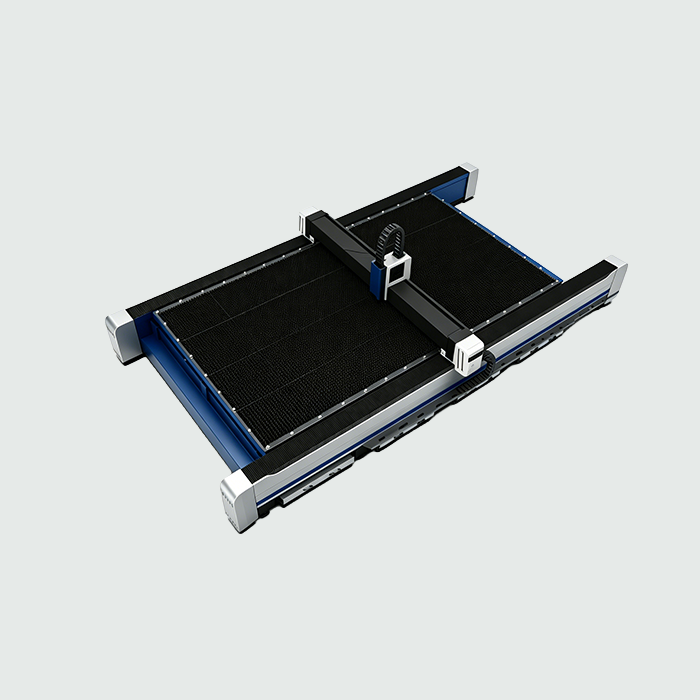

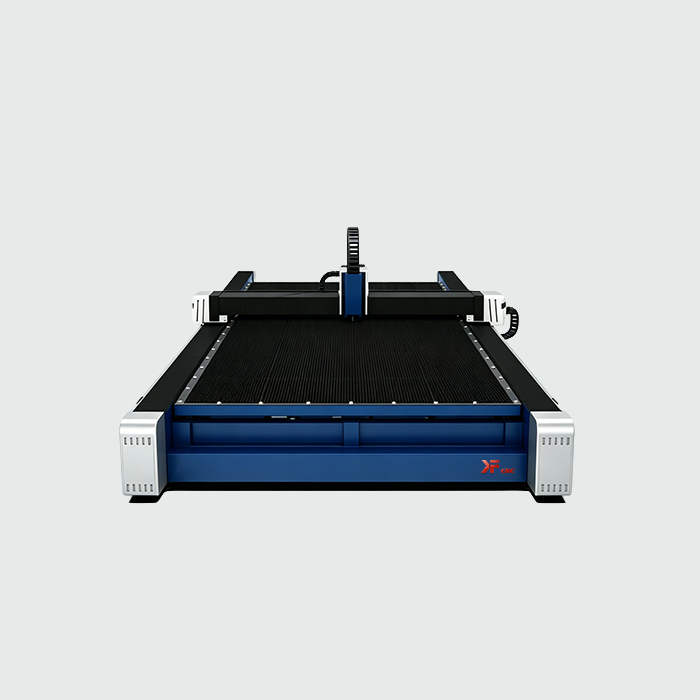

2Stationary Workpiece Architecture for Ultra-Precision
Engineered with a static-bed and moving-gantry structure. By keeping the heavy workpiece stationary during the entire process, it eliminates inertia-related errors and transmission inaccuracies common in moving-table designs. This ensures superior mechanical rigidity, rock-solid stability, and exceptional dimensional consistency across oversized formats.

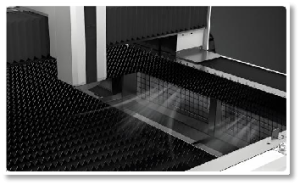

3Intelligent Synchronized Zoned Extraction
Equipped with an intelligent multi-zone suction system synchronized with the cutting head. Air extraction is concentrated only in the active cutting area, maximizing dust and slag removal efficiency while minimizing energy consumption. This ensures a clean, eco-friendly workspace even on ultra-long processing tables.

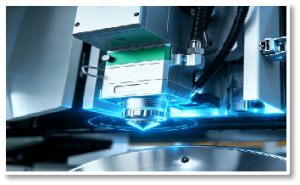

4High-Dynamic Precision Laser Head
Utilizing a high-performance laser head with intelligent autofocus technology. It delivers a concentrated, high-quality beam for ultra-fast and precise cutting. By minimizing the Heat-Affected Zone (HAZ) and ensuring burr-free edges, it provides a superior finish across various material types and thicknesses.
|
TECHNICAL PARAMETERS |
|||||
| Machine Model | KC6025 | KC8025 | KC12025 | KC13032 | KC16032 |
| Working Area | 6000mm*2500mm | 8000mm*2500mm | 12000mm*2500mm | 13000mm*3200mm | 16000mm*3200mm |
| Laser Power | 3000W/6000W/120000W/20000W | 3000W/6000W/120000W/20000W | 6000W/120000W/20000W/30000W | 6000W/120000W/20000W/30000W | 120000W/20000W/30000W |
| X/Y Pos. Accuracy | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm |
| X/Y Rep. Pos. Accuracy | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm |
| Max. Linkage Pos. Speed | 110m/min | 110m/min | 110m/min | 110m/min | 110m/min |
| Max. Acceleration | 1.5G | 1.5G | 1.5G | 1.5G | 1.5G |
| Rated Volt. & Freq. | 3PH 380V 50Hz | 3PH 380V 50Hz | 3PH 380V 50Hz | 3PH 380V 50Hz | 3PH 380V 50Hz |
Suitable Industries： Shipbuilding, steel structure, construction machinery, rail transit, wind power, energy equipment, bridge engineering, large steel service centers.
Application Scenarios： One‑time cutting of oversized plates; high‑power thick plate processing; modular extendable bed; one‑pass bevel cutting; 24h heavy‑duty stable production.
