Plate & Tube Fiber Laser Cutting Machine

Short Description:

The plate and tube fiber laser cutting machine cuts sheet, tube and structural profile on one platform, so a workshop that needs both does not have to buy and house two separate machines. C-channels, I-beams and angle steel are processed in the same setup as flat sheet, including high-speed cut-offs, hole patterns and complex bevels. The full-stroke mobile chuck design also allows precise cutting at both ends of the tube, leaving zero tailing.

Three models cover the range: KC3015T24 with a 3000×1500 mm table, KC4020T24 with 4000×2000 mm, and KC6020T36 with 6000×2000 mm. All three run a 3000W or 6000W fiber laser and clamp tube with 240 mm pneumatic chucks — round pipe from Φ20-230 mm and square tube from □20-230 mm on the first two models, extended to Φ20-350 mm and □20-350 mm on KC6020T36. Internal and external dust removal with a patented dust-proof design keeps the working area clean when cutting carbon steel, stainless steel, copper and aluminium.

  • Sheet, tube and structural steel on one machine
  • 240 mm pneumatic chuck, Φ20-350 mm round tube
  • Zero tailing with full-stroke mobile chuck
  • Patented internal & external dust removal


  • :

Model Selection Guide

ModelProcessing areaLaser powerRound / square tubeChuck
KC3015T243000 × 1500 mm3000W / 6000WΦ20-230 / □20-230 mm240 mm pneumatic
KC4020T244000 × 2000 mm3000W / 6000WΦ20-230 / □20-230 mm240 mm pneumatic
KC6020T366000 × 2000 mm3000W / 6000WΦ20-350 / □20-350 mm240 mm pneumatic

Selection guide based on the technical parameter table. Choose by sheet size first: 3000×1500 mm for standard panels, 4000×2000 mm or 6000×2000 mm for larger sheets. KC6020T36 additionally extends the tube range to Φ20-350 mm. Tell us your sheet size, tube diameter and daily output and we will confirm the model.

1Dual-Functionality: Maximizing ROI & Space

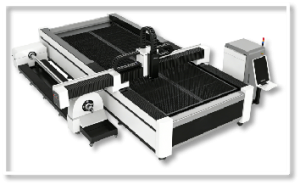

Plate and tube fiber laser cutting machine combining a sheet cutting table and a tube chuck in one frame
By integrating sheet and tube cutting into a single platform, this system delivers the performance of two specialized machines within a single footprint. It significantly reduces your initial capital investment (CAPEX) and optimizes workshop floor space,
2Universal Material & Profile Processing

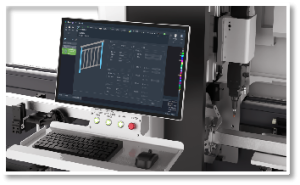

CNC control screen showing the sheet nesting layout beside the laser cutting head on the plate and tube machine
This versatile system handles not only metal sheets but also a wide array of tubes and structural profiles (C-channels, I-beams, Angle steel). With the ability to perform high-speed cut-offs, intricate hole patterns, and complex beveling in a single-pass setup, it empowers you to take on diverse industrial projects without additional equipment.
3Seamless Intelligent Switching

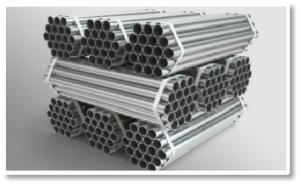

Bundles of round steel tube staged for batch cutting on the plate and tube fiber laser machine
The full-stroke mobile design supports precise cutting at both pipe ends, achieving zero-tail material processing. This increases material utilization, reduces waste, lowers production costs, and meets the needs of efficient production and fine processing.
4Advanced Eco-Friendly & Dust Protection System

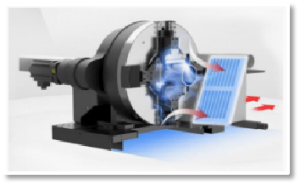

Pneumatic chuck with internal dust extraction airflow on the plate and tube laser cutting machine
Equipped with internal and external dust removal systems and patented dust-proof designs, the machine ensures a clean work environment and extended service life. It handles standard and special-shaped pipes in various metals like carbon steel, stainless steel, copper, and aluminum, meeting diverse processing needs.

TECHNICAL PARAMETERS

Machine Model KC3015T24 KC4020T24 KC6020T36
Processing Area 3000mm*1500mm 4000mm*2000mm 6000mm*2000mm
Laser Power 3000W/6000w 3000W/6000w 3000W/6000w
Clamping Range Round Pipe

  Φ20-230mm                            Square Pipe                  □20-230mm

Round Pipe

 Φ20-230mm                            Square Pipe                  □20-230mm

Round Pipe

  Φ20-350mm                            Square Pipe                  □20-350mm

Chuck Structure 240 Pneumatic Chuck 240 Pneumatic Chuck 240 Pneumatic Chuck
Power Supply 3PH 380V 50Hz 3PH 380V 50Hz 3PH 380V 50Hz





Suitable Industries General job shops, metal fabrication, furniture, construction hardware, multi-product factories





Application Scenarios One machine for sheet + pipe; space-saving; flexible multi-material production; mixed small-batch processing

FAQ

Q: What is a plate and tube fiber laser cutting machine?
A: It is a single machine that cuts flat sheet and tube on one platform. A 3000W or 6000W fiber laser works on the same gantry, so a workshop that needs both sheet and pipe does not have to buy, house and maintain two separate machines.

Q: What sheet sizes are available?
A: Three models: KC3015T24 with a 3000×1500 mm table, KC4020T24 with 4000×2000 mm, and KC6020T36 with 6000×2000 mm. All three are available with a 3000W or 6000W laser source.

Q: What tube sizes can it cut?
A: KC3015T24 and KC4020T24 clamp round pipe from Φ20-230 mm and square tube from □20-230 mm. KC6020T36 extends this to Φ20-350 mm round and □20-350 mm square, all held by 240 mm pneumatic chucks.

Q: What plate thickness can it cut?
A: With the 6000W source the machine cuts carbon steel up to 25 mm and stainless steel up to 20 mm; the 3000W configuration suits thinner sheet at lower running cost. Send us your material and required thickness and we will confirm the laser power.

Q: Can it cut structural profiles as well as tube?
A: Yes. Besides round and square tube, the machine handles profiles such as C-channels, I-beams and angle steel, with high-speed cut-offs, hole patterns and complex bevels executed in a single setup.

Q: Does one machine really replace two?
A: For mixed production, yes. Sheet and tube work share the same platform, laser source and control system, so the floor space, the operator and the maintenance routine are shared as well — which is where most of the saving comes from.

Q: How does it switch between sheet and tube cutting?
A: The full-stroke mobile chuck design lets the cutting head work at both ends of the tube, so the pipe is cut precisely at each end and the process runs with zero tailing. Switching between sheet and tube is done through the control system rather than by moving the workpiece to another machine.

Q: How are dust and fumes handled?
A: The machine uses internal and external dust removal with a patented dust-proof design, keeping the cutting area clean when processing carbon steel, stainless steel, copper, aluminium and special-shaped tube.

Q: What is the price and delivery time, and can I test my material?
A: Price depends on model, table size, laser power and options. Delivery is normally 30-40 days after deposit. Send us your sheet size, tube diameter, material and drawings and we will arrange a sample cutting test.
