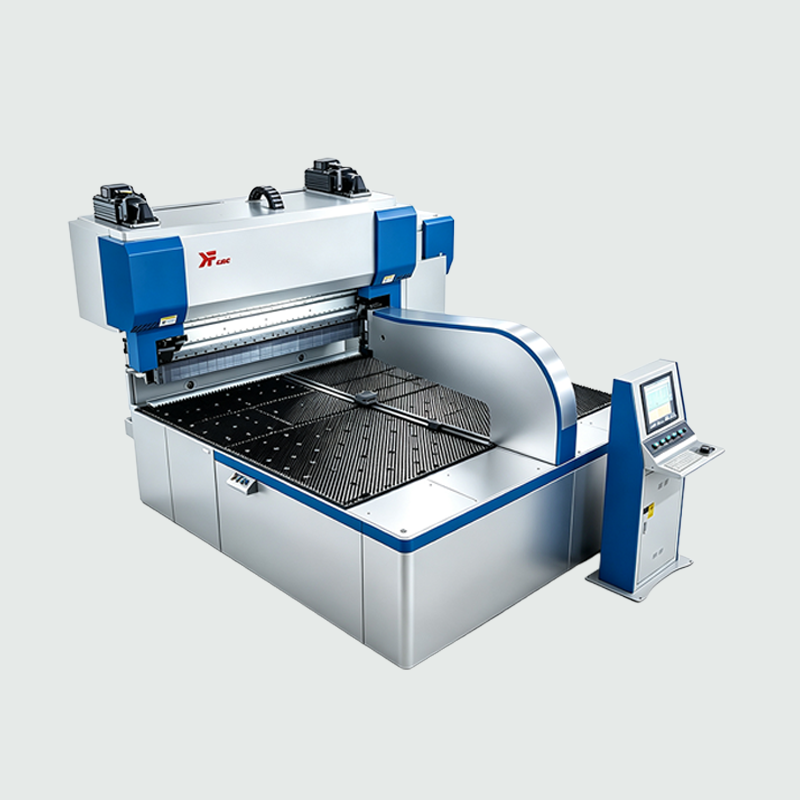

Automatic Tool-Changing (ATC) Panel Bending Center

Short Description:

The ATC is a fully automatic panel bending center that changes tools and programs itself, so one operator can run mixed sheet-metal parts with no manual setup. A German Beckhoff controller with closed-loop control and an Italian GIVI linear encoder hold bending angle accuracy to ±0.75°, while the heat-treated high-strength frame keeps the machine stable at speed. It bends sheet from 0.5 to 1.5 mm carbon steel up to 2500 mm long with no dedicated molds.

The blank-holder tool automatically adjusts its length to the sheet, automatic programming completes the whole process, and the system checks and optimizes bends by itself. All servo motors keep operation fast and energy efficient. Key components are Beckhoff, BALLUFF, Schneider, NSK and SMC. Send us your part drawing and we will confirm the process and quote.


Technical Specification

Model Unit B2530 Remark
Max. Bending Length mm 2500
Max. Work-piece Diagonal Length mm 2800 Unfolded
Min. Box Size mm 410×230 Inner side width
Max. Bending Height mm 300
Max. Bending Force KN 280
Max. Pressing Force KN 1100 Option
Max. Bending Inner Buckle Depth mm 30
Thickness of Sheet mm 0.5-1.5 Carbon Steel
Bending Angle ° -130-+130
Bending Angle Accuracy ° ±0.75
Bend Straightness mm/m ±0.3
Positioning Accuracy mm ±0.1
Adjustment of Bending Length Auto
Bending Process Auto
Overlapping Function Option Max. Pressing Force:1100KN
Axis 18
Gas Pressure MPa ≥0.6
Power KVA 65
Weight T 21
Machine Dimensions mm 5000×3200×2800



Standard Components

Controller Germany Beckhoff
I/0 Module Germany Beckhoff
Grating Ruler Italy GIVI
Sensor Germany BALLUFF
Relay Schneider/Omoron
Servo Motor and Driver VEICHI
Heavy Precision Ball Screw Nanjing YIGONG
Heavy Precision Guider Nanjing YIGONG
Precision Reducer Lee Ming, Taiwan
Precision Bearings NSK, Japan
Timing Belt and wheel Fulong, Ningbo
Pneumatic Components SMC/ Airtac
Lubrication Component BIJUR
Software Kafe

Which Panel Bending Center Fits Your Work?

ModelTool changeBending lengthAxesAngle accuracyBest for
MTC (KMB-2200)Manual2250 mm130.03 mmSmall batches, varied parts, lower investment
ATC (B2530)Automatic2500 mm18±0.75°High-volume runs, frequent tool changes, automation lines

* Both are mold-free panel bending centers. Manual tool change suits high-mix, low-volume work; automatic suits continuous production.

FAQ

Q: What is an automatic tool-changing panel bending center? A: It is a panel bending center that changes its blank-holder tool and loads bending programs automatically, without an operator fitting molds. The ATC (B2530) uses a German Beckhoff controller and 18 servo axes to form sheet-metal parts such as boxes, panels and enclosures in one setup, with no dedicated upper or lower tooling.

Q: What is the difference between the ATC and the MTC panel bending center? A: The MTC (KMB-2200) uses manual tool change, 13 axes and a 2250 mm bending length, suited to small batches and varied parts. The ATC (B2530) changes tools automatically, has 18 axes and a 2500 mm bending length, and is built for continuous production and frequent tool changes. Both bend without molds.

Q: What sheet size and thickness can the ATC handle? A: Maximum bending length is 2500 mm, maximum unfolded workpiece diagonal is 2800 mm, minimum box size is 410 x 230 mm inner width, and maximum bending height is 300 mm. It bends carbon steel from 0.5 to 1.5 mm with a bending angle range of -130 to +130 degrees.

Q: How accurate is the ATC? A: Bending angle accuracy is ±0.75 degrees, bend straightness is ±0.3 mm per metre, and positioning accuracy is ±0.1 mm. A closed-loop Beckhoff system and an Italian GIVI precision linear encoder maintain these tolerances across the full sheet.

Q: What is the bending force and pressing force? A: Maximum bending force is 280 kN. An optional overlapping function with 1100 kN maximum pressing force is available for deeper forming work. Maximum bending inner buckle depth is 30 mm.

Q: Does it need tooling or molds? A: No. The ATC bends without dedicated bending tools. The blank-holder tool automatically adjusts its length to the sheet, and automatic programming software completes the whole process, including self-checking and optimization of the bend sequence.

Q: What components are used in the machine? A: The controller and I/O module are German Beckhoff, the grating ruler is Italian GIVI, sensors are German BALLUFF, relays are Schneider/Omron, servo motors and drivers are VEICHI, ball screws and guides are Nanjing YIGONG, the reducer is Taiwan Lee Ming, bearings are Japan NSK, pneumatics are SMC/Airtac, and lubrication is BIJUR.

Q: Can it join an automated production line? A: Yes. Automatic tool change, automatic bending-length adjustment and automatic process programming make the ATC suitable for unattended cells and production lines. Send us your part drawing and we will confirm the layout and interface.

Q: What is the price, delivery time, and can I test my part? A: Price depends on configuration and options such as the 1100 kN overlapping function. Send us your part drawing, material and thickness, and we will confirm the process, quote, and arrange a bending test. Delivery time is confirmed with the order.
