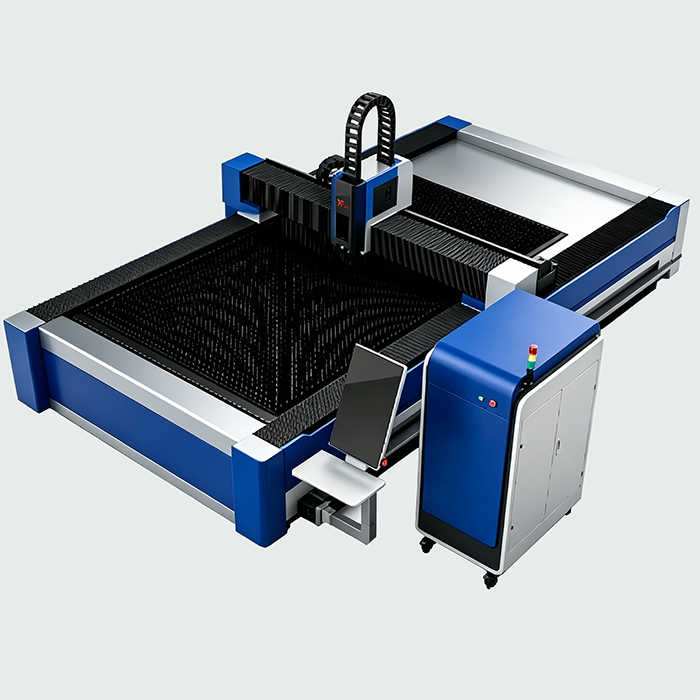

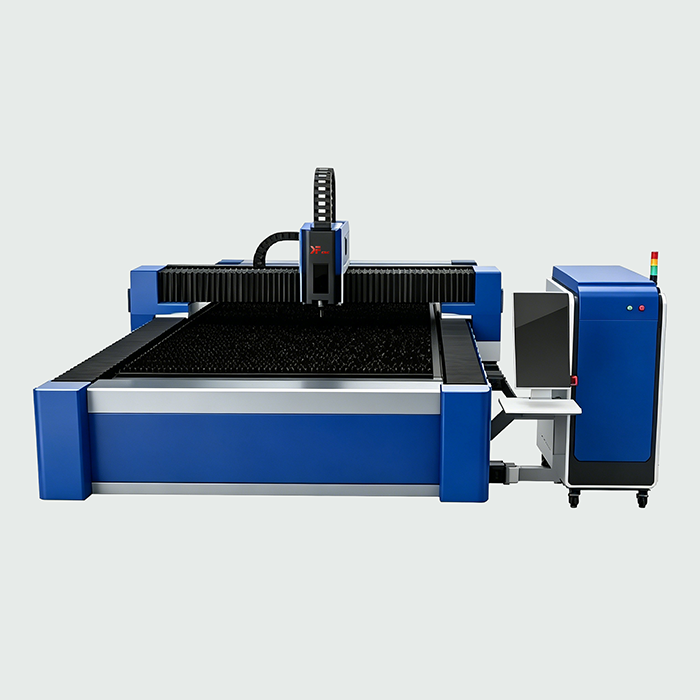

KC Series Fiber Laser Cutting Machine (Single Platform)

Short Description:

The KAFE CNC KC Series Fiber Laser Cutting Machine is designed for efficient and precise sheet metal processing. Available in 1500W, 3000W and 6000W configurations, it supports working areas from 3000 × 1500 mm to 6000 × 2000 mm.

It can process carbon steel, stainless steel, aluminum and galvanized steel, making it suitable for sheet metal fabrication, electrical cabinets, metal furniture, kitchen equipment and agricultural machinery.

With a heavy-duty welded machine bed, precision-machined gantry structure and intelligent CNC control, the KC Series provides a reliable solution for workshops seeking stable cutting performance and flexible production capabilities.

Core Advantages

  • Heavy-duty welded machine frame with high rigidity. Stress relief treatment ensures no deformation during long-term heavy-load operation and extends service life.
  • Precision gantry milling, flatness ≤0.03mm/1000mm. Guarantees consistent dimension for mass production and reduces secondary polishing work.
  • Intelligent centralized automatic lubrication system. Automatic oil supply reduces wear and manual maintenance workload.
  • Heat-resistant serrated worktable. Easy slag removal and prevents scratches on sheet metal.
  • High-performance CNC system. User-friendly interface, smooth cutting path and stable piercing.
  • Wide material compatibility: carbon steel, stainless steel, aluminum, galvanized steel, etc.
  • Customizable to meet Russian local standards, including electrical configuration and Russian technical documents.
  • Cost-effective and reliable, low failure rate, suitable for small & medium metal fabrication workshops.


Recommended Cutting Thickness by Material and Laser Power

Max cutting thickness (mm, with good edge quality)

Material 1500W 3000W 6000W
Carbon steel 1-4 1-10 1-16
Stainless steel 1-3 1-5 1-8
Aluminum 1-2 1-4 1-6
Galvanized steel 1-2 1-4 1-6

Actual cutting results may vary depending on material grade, material quality, assist gas, cutting speed and laser source. Contact KAFE CNC for material testing and recommended cutting parameters.

  1 Heavy-Duty Monolithic Welded Bed

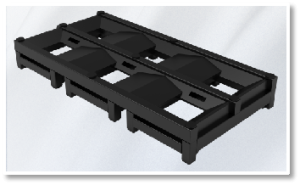

Heavy-duty welded bed of KC Series fiber laser cutting machine

Engineered with a high-rigidity, integrated welded steel structure. It is designed to withstand continuous high-load operations without deformation or structural sagging, ensuring a decades-long service life.

2 Precision Gantry Milling for Superior Accuracy

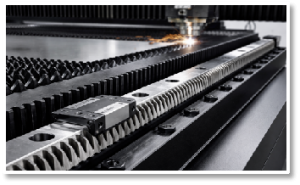

Precision-machined guide rails and rack of KC Series fiber laser cutting machine

The machine bed undergoes professional gantry milling to ensure the installation surfaces of rails and racks maintain a flatness tolerance of ≤0.03mm/1000mm. This provides a rock-solid foundation for ultra-precise positioning and mechanical integrity.

3 Intelligent Centralized Auto-Lubrication

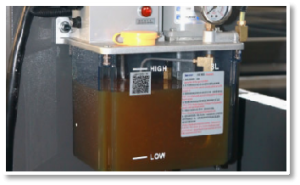

Centralized automatic lubrication system of KAFE CNC fiber laser cutting machine

Equipped with a smart, centralized lubrication system that delivers precise, timed oiling to all guide rails and racks. This significantly reduces mechanical wear, extends the lifespan of transmission components, and ensures maintenance-free operation.

 4 Optimized Serrated Table with Modular Design

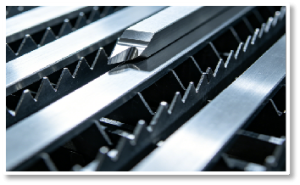

Modular serrated worktable of KC Series fiber laser cutting machine

The serrated worktable minimizes contact points to reduce heat conduction during cutting, effectively preventing workpiece distortion. Its modular, detachable design allows for effortless slag removal and quick maintenance.

Technical Specifications

TECHNICAL PARAMETER

Machine Model

KC3015

KC4020

KC6020

Working Area

3000mm*1500mm

4000mm*2000mm

6000mm*2000mm

Laser Power

1500W/3000W/6000W

1500W/3000W/6000W

1500W/3000W/6000W

X/Y Axis Positioning Accuracy

±0.03mm

±0.03mm

±0.03mm

X/Y Axis Repeatability

±0.02mm

±0.02mm

±0.02mm

Maximum Simultaneous Positioning Speed

110m/min

110m/min

110m/min

Maximum Acceleration

1.0-1.5G

1.0-1.5G

1.0-1.5G

Power Rated Voltage and Frequency

380V/50Hz

380V/50Hz

380V/50Hz

Suitable Industries: Sheet metal fabrication, electrical cabinets, signage & advertising, kitchen equipment, metal furniture, fitness equipment, agricultural machinery.

Application Scenarios: General-purpose workshop cutting; small-batch sheet metal parts; thin to medium plate processing (carbon steel, stainless steel, aluminum); standard component mass production.

FAQ

Q: What thickness can the KC series cut?
A: With a 3000W source it cuts up to 10mm carbon steel and 5mm stainless steel. See the cutting thickness table above.

Q: What is the price?
A: Depends on model and power. Contact us for an exact quote within 24 hours.

Q: What is the delivery time?
A: Normally 30-40 days after deposit. Includes spare parts kit and operation training.

Q: Can you customize voltage?
A: Yes. 380V/50Hz is standard; other configurations are available for overseas markets.

Q: Which laser source do you use?
A: Raycus / MAX / IPG fiber sources with worldwide service support.

Q: Do you provide installation and training?
A: Free remote guidance and English manuals; on-site engineer service is available on request.

Q: Can I choose different working table sizes?
A: Yes. The KC Series offers different working area options, including 3000 × 1500 mm, 4000 × 2000 mm and 6000 × 2000 mm.

Q: Can I test my material before purchasing?
A: Contact KAFE CNC to discuss sample cutting tests. You can provide your material type, thickness and cutting requirements for evaluation.

Q: How can I choose the right laser power?
A: The appropriate laser power depends on your material, thickness, required cutting quality and production efficiency. Our team can help recommend a suitable configuration.
