Three-Chuck Tube Laser Cutting Machine

Short Description:

The three-chuck tube laser cutting machine adds a third self-centering chuck between the front and rear chucks. The rear chuck releases the tube before the cutting head reaches the bar end, leaving only 20-70 mm of tailing instead of a full clamping stub, so each bar is processed with near-zero waste. Dual-roller cross-clamping chucks and an active follow-up support system keep the tube centered and vibration-free at high rotation speed.

Two models, KCT6036T3 and KCT9036T3, clamp round tube from Φ20-350 mm and square tube from □20-350 mm, with 3000W, 6000W and 12000W laser power, effective cutting length of 6500 mm or 9500 mm, and 80 r/min maximum rotation speed. A weld seam recognition camera locates welds automatically, while one-key drawing-free operation turns basic parameters into a complete 3D model and cutting program.



  • High stability, anti-vibration
  • Weld seam recognition
  • One‑key operation
  • Ultra-short tailings (20–70mm)
  • Automatic loading optional


Tube Diameter and Laser Power Selection Guide

Round / square tube sizeModelLaser powerCutting lengthTailing length
Φ20-350 / □20-350 mmKCT6036T33000W / 6000W / 12000W6500 mm20-70 mm
Φ20-350 / □20-350 mmKCT9036T33000W / 6000W / 12000W9500 mm20-70 mm

Selection guide based on the technical parameter table. Both models clamp the same Φ20-350 mm round tube and □20-350 mm square tube range — choose the model by bar length. Tell us your tube size, wall thickness and daily output and we will confirm the model, laser power and chuck configuration.

1High-Precision Specialized Chucks

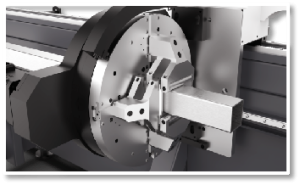

Large-diameter pneumatic chuck with clamping jaws holding a square tube on the three-chuck tube laser cutting machine



Featuring professional precision chucks with a dual-roller cross-clamping mechanism. The high-torque, fully enclosed design ensures a secure grip without slippage during high-speed rotation. This effectively eliminates tube "whipping" effects, maintaining exceptional accuracy even at peak cutting velocities.



2Dual Dynamic Support System

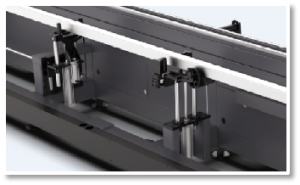

Follow-up support roller units supporting a long tube on the three-chuck tube cutting machine bed





A robust dual-support architecture combining active follow-up support and cam-type rollers. This system effectively suppresses both radial vibration and axial drifting during high-speed processing. By providing 360° dynamic stability, it ensures the tube remains perfectly centered for consistent, high- quality results.



3Advanced Weld Seam Recognition

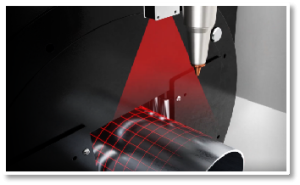

Fiber laser cutting head cutting a round tube with red beam guidance on the three-chuck tube laser cutter





Powered by high-definition color recognition technology, this feature automatically detects and locates weld seams regardless of their orientation. By bypassing weld zones or aligning cuts precisely with them, it eliminates manual positioning errors and protects your tooling, ensuring superior flexibility and scrap reduction.



4One-Click "Sketch-Free" Operation

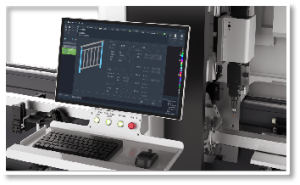

CNC control screen with 3D tube model for one-key drawing-free operation on the three-chuck tube laser cutting machine



Equipped with an intuitive, drawing-free OS. Forget complex CAD modeling—simply input basic parameters, and the system automatically generates a complete 3D model. Experience true "One-Click" production, significantly lowering the technical barrier for operators and accelerating your workflow.





TECHNICAL PARAMETERS

Machine Model KCT6036T3 KCT9036T3
Clamping Range Round Pipe               Φ20-350mm                            Square Pipe                  □20-350mm          Round Pipe               Φ20-350mm                            Square Pipe                  □20-350mm
Laser Power 3000W/6000W/12000W 3000W/6000W/12000W
Max. Rotational Speed 80r/min 80r/min
Eff. Tube Cutting Length 6500mm 9500mm
Max. Single Tube Load Cap. 1200kg 500kg
Chuck Structure 160Pneumatic Chuck 360Pneumatic Chuck
Rated Volt. & Freq. 3PH 380V 50Hz 3PH 380V 50Hz





Suitable Industries Heavy pipe, construction, large steel structure, long pipe precision parts.





Application Scenarios Extra-long heavy pipe; anti-deformation support; zero tailings; weld seam recognition; stable high-speed rotation.

FAQ

Q: What is a three-chuck tube laser cutting machine?
A: It uses three chucks — front, rear and a middle self-centering chuck — to hold the tube along its length. The rear chuck opens before the cutting head reaches the end of the bar, so only 20-70 mm of tailing is left instead of a full clamping stub.

Q: What tube sizes can it cut?
A: Both models clamp round tube from Φ20-350 mm and square tube from □20-350 mm — heavy pipe, construction profiles and large steel structure sections.

Q: How much material is wasted at the end of each bar?
A: 20-70 mm of tailing. Because the third chuck releases the tube before the cut reaches the end, the last part of the bar stays usable instead of being scrapped together with the clamping stub.

Q: Which model should I choose, KCT6036T3 or KCT9036T3?
A: Both cover the same Φ20-350 mm tube range and the same 3000W, 6000W and 12000W power options. KCT6036T3 cuts bars up to 6500 mm and KCT9036T3 up to 9500 mm, so choose by standard bar length and daily output.

Q: What laser power should I choose?
A: 3000W, 6000W and 12000W are available on both models. Higher power raises cutting speed on thick-wall tube and shortens piercing time. Send us your tube size, wall thickness and hourly output and we will confirm the power.

Q: Why do three chucks matter for long tubes?
A: The middle self-centering chuck and the dual dynamic support system hold the tube on both sides of the cutting zone, suppressing radial vibration and axial drift at rotation speeds up to 80 r/min, so a 9.5 m bar stays centered along its full length.

Q: What is weld seam recognition?
A: A high-definition colour camera locates the weld seam on the tube automatically, whatever its orientation, so the program can cut through the seam or offset away from it. This removes manual positioning and keeps the nozzle clear of weld beads.

Q: Do operators need CAD experience?
A: No. The one-key drawing-free system builds a complete 3D model from basic parameters and generates the cutting program, so a new operator can run batch tube production after short training.

Q: What is the price and delivery time, and can I test my tube?
A: Price depends on model, laser power and options such as automatic loading. Delivery is normally 30-40 days after deposit. Send your tube size, wall thickness and cut drawings and we will arrange a sample cutting test.
