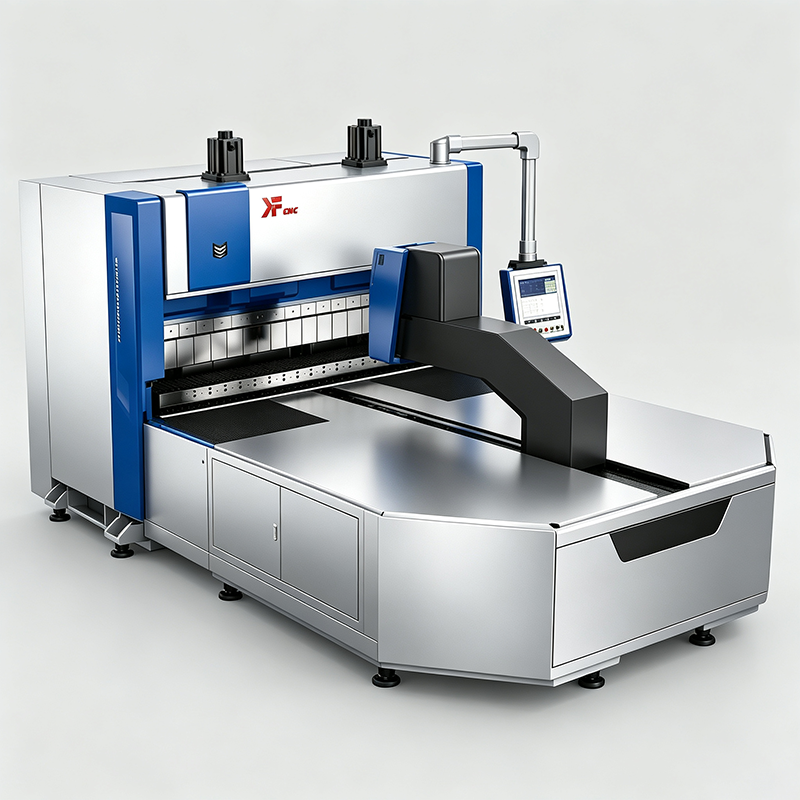

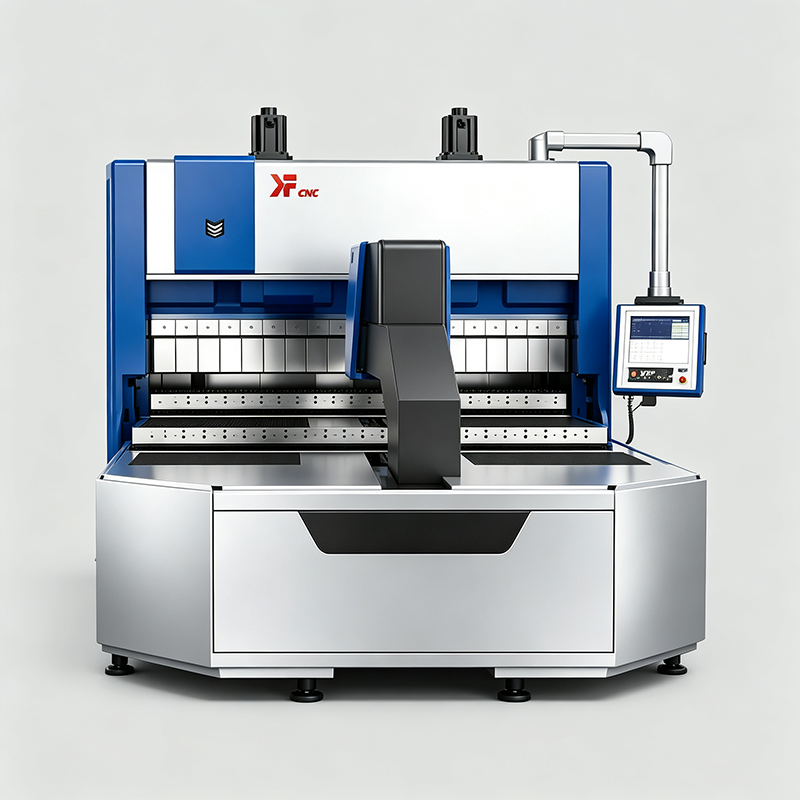

Manual Tool-Changing (MTC) Panel Bending Center

Short Description:

The MTC is a manual tool-changing panel bending center that forms complex sheet-metal parts without dedicated molds. A pure electric servo drive replaces hydraulics for clean, quiet and maintenance-free operation, while the SYNTEC CNC controls all 13 axes in parallel. It bends at up to 0.5 seconds per blade and holds accuracy to 0.03 mm on sheet from 0.35 mm up to 2.0 mm aluminium, 1.5 mm carbon steel or 1.0 mm stainless steel.

The KMB-2200 handles sheets up to 2200 x 1500 mm with a 2250 mm bending length and 175 mm bending height, including four-side forming down to 320 x 200 mm and free arc bending from R1.2 mm. A high-grade QT500 cast frame and heavy-duty TBI screw and PMI linear rails keep the machine stable at speed. Send us your part drawing and we will confirm the process and quote.


1、Main Configuration Instructions:

High-grade QT500 cast iron machine frame of the MTC panel bending center



High-grade casting body

The core frame of the equipment is constructed from high-grade QT500-7 and gray iron 250 castings.

The entire machine is designed and manufactured according to high-precision machine tool standards. Both castings and welded components undergo rigorous stress relief treatment and are rigorously inspected using high-precision testing equipment to ensure long-term operational accuracy, stability, and high rigidity.

aiwan TBI heavy-duty ground ball screw inside the MTC panel bending center





Heavy-duty screw

Taiwan MYE TBI heavy-duty ground-grade screw is used for more stable transmission and higher precision.

This design achieves the highest speed and precision and ensures extremely low operating costs.

Taiwan PMI/SHAC heavy-load roller linear guide rail on the MTC bending center





High-strength linear rails

Taiwan PMI/SHAC heavy-load high-precision roller linear guides are used, which have greater load-bearing capacity and higher precision.

2、Main technical parameters:

KMB-2200 Technical Parameters
Feeding structure Arm Type
Workbench structure Brush
Bending length 2250mm
Sheet length 2200mm
Sheet width 1500mm
Bending height 175mm
Minimum four-side forming dimensions 320*200mm
Minimum two-side forming dimensions 200mm
Minimum arc radius 1.2mm
Maximum continuous bending speed 0.5s/blade
Break distance between upper and lower blades 190mm
Bending accuracy 0.03mm
Bending angle 0-180°
Maximum material thickness Aluminum: 2.0mm / Carbon Steel: 1.5mm / Stainless Steel: 1.0mm
Minimum material thickness 0.35mm
CNC system SYNTEC/Taiwan New Generation
Operating system Win7+OS
Number of axes Standard 13 Axis
Rated voltage 380V
Peak power 24KW
Average power 4.5KW
Machine dimensions 4850mm*2780mm*2600mm
Machine weight Approximately 12,000kg



3、Configuration Details:

KMB-2200 main functions and configurations
Machine frame Kefei independently designs and develops the frame, uses high-grade QT500 casting, and undergoes strict stress relief treatment to ensure the long-term operation accuracy, stability and high rigidity of the machine.
Mold High-frequency quenching and tempering are adopted, which makes it more wear-resistant and has a longer service life.
Control system Taiwan's new generation CNC system, independently developed by Kefei CNC, accurately achieves the perfect matching of all axes of the equipment in parallel, making program programming faster and easier.
Oil supply and self-lubrication system The whole machine is automatically oiled and alarmed when oil is insufficient to ensure safe operation of the machine
Flattening function Flattening of workpieces
Upper and lower edge pressing Realize the upper and lower dead edge of the workpiece
Handwheel The system has an anti-collision knife function, and the user can control each axis to any desired position through the handwheel
Automated production line interface Can connect to upstream and downstream production equipment to achieve automated production
Advanced commands Users can customize the design and control of complex workpieces according to their needs
Arc commands Directly call the arc command and input the radius to achieve the arc bending


Servo drive

Inovance/Hechuan bus servo adopts advanced manufacturing technology, has strong overload resistance, is more suitable for quick start at the moment of bending, runs smoothly at low speed, and has high precision
Electrical components Schneider of France, an internationally renowned electrical company, has more stable and reliable product performance
Micro relays Japan Izumi relay, an internationally renowned brand, uses pure copper as the coil, which has excellent conductivity, stable power-on performance and long service life.

4、Bending case display

KaFe Panel Bender(Bending center) can bend sheet metal into various complex shapes without molds. It can bend right angles, non-right angles, arcs, up and down bends and other complex shapes, and is used in the metal forming field of different industries and different workpieces.

1) Display of actual folding workpieces

Sheet metal parts bent by the MTC panel bending center, application samples

2) Application scenario display

KAFE CNC sheet metal production workshop and cabinet enclosures

Which Panel Bending Center Fits Your Work?

ModelTool changeBending lengthAxesBending accuracyBest for
MTC (KMB-2200)Manual2250 mm130.03 mmSmall batches, varied parts, lower investment
ATC (B2530)Automatic2500 mm18±0.75°High-volume runs, frequent tool changes, automation lines

* Both are mold-free panel bending centers. Manual tool change suits high-mix, low-volume work; automatic suits continuous production.

FAQ

Q: What is a panel bending center, and how is it different from a press brake? A: A panel bending center forms sheet metal with a moving bending arm and a universal clamping tool instead of press-brake punches and dies, so it needs no dedicated molds. The MTC bends each blade in about 0.5 seconds, around three times faster than a CNC press brake, and handles four-side forming in one setup. It is ideal for flat sheet parts such as panels, covers and enclosures.

Q: Does the MTC need tooling or molds? A: No. The MTC bends sheet metal without dedicated upper and lower molds. A universal clamping tool holds the sheet and a programmable bending arm forms each edge, so you can switch between different part shapes by changing the program rather than changing tooling.

Q: What is the maximum sheet size and bending length? A: The KMB-2200 has a 2250 mm bending length and takes sheet up to 2200 mm long by 1500 mm wide. Bending height is 175 mm, minimum four-side forming size is 320 x 200 mm, minimum two-side forming is 200 mm, and the minimum arc radius is 1.2 mm.

Q: What sheet thickness can it bend? A: Maximum thickness is 2.0 mm aluminium, 1.5 mm carbon steel and 1.0 mm stainless steel, with a minimum of 0.35 mm. Exact capacity depends on the part shape and material, so send us your drawing and we will confirm the setup.

Q: How fast and accurate is it? A: Maximum continuous bending speed is 0.5 seconds per blade, and the machine holds bending accuracy of 0.03 mm with a 0 to 180 degree bending range. Full servo control reaches the specified product accuracy within about 3 seconds.

Q: What CNC system and drive does it use? A: It uses a SYNTEC / Taiwan new-generation CNC system running on Windows 7 with 13 standard axes controlled in parallel. A pure electric servo drive replaces hydraulics, using Inovance/Hechuan bus servos for fast starts, smooth low-speed running and high precision.

Q: What makes the machine stable and durable? A: The core frame is made from high-grade QT500-7 and gray iron 250 castings with stress-relief treatment, built to machine-tool standards. It uses a Taiwan TBI heavy-duty ground screw, PMI/SHAC heavy-load roller linear rails, high-frequency quenched molds, and Schneider electrical components with Japan Izumi relays.

Q: Can it connect to an automated production line? A: Yes. The MTC has an automated production line interface and can connect to upstream and downstream equipment. It also supports custom commands, arc commands, a flattening function, upper and lower dead-edge pressing, and a handwheel with anti-collision protection.

Q: What is the price, delivery time, and can I test my part? A: Price depends on configuration and options. Send us your part drawing, material and thickness and we will confirm the process, quote, and arrange a bending test. Delivery time is confirmed with the order.
