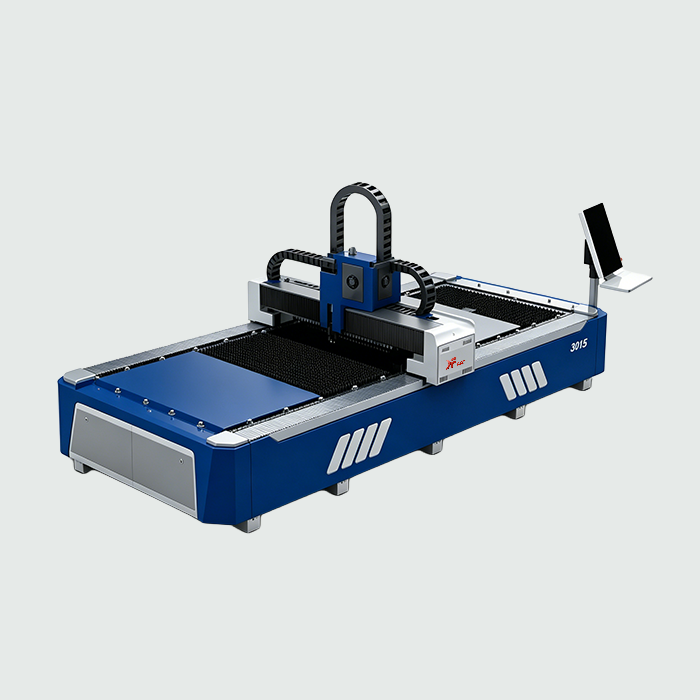

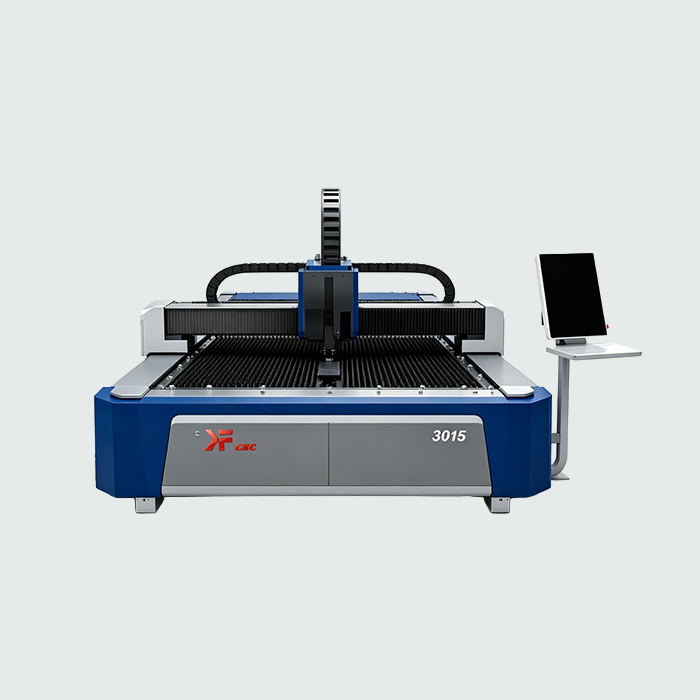

Economy Fiber Laser Cutting Machine (Single Platform)

Short Description:

Economical single-platform fiber laser cutting machine with high cost performance and high efficiency. It adopts integrated streamlined structure, compact footprint. Stable transmission with low vibration. Equipped with advanced high-precision laser head for smooth cutting edges. Eco-friendly design with good dust control. Suitable for carbon steel, stainless steel, aluminum, galvanized sheet and other metal sheets. Ideal for small & medium sheet metal workshops. Custom voltage and configuration available for overseas markets.

Key Features

  • Cost-effective & high efficiency, ideal entry-level model
  • Integrated streamlined structure, space-saving
  • Stable transmission and low vibration during operation
  • Advanced high-precision laser head, clean cutting edges
  • Eco-friendly design with reliable dust removal
  • Process carbon steel, stainless steel, aluminum, galvanized sheet
  • Custom voltage & configuration,  technical documents available


Recommended Cutting Thickness by Material and Laser Power

Material1500W3000W6000W
Carbon steel1-4 mm1-10 mm1-16 mm
Stainless steel1-3 mm1-5 mm1-8 mm
Aluminum1-2 mm1-4 mm1-6 mm
Galvanized steel1-2 mm1-4 mm1-6 mm

Recommended thickness range for production cutting with clean edges. Actual results vary with material quality, assist gas and required edge finish.

1 Reinforced High-Rigidity Frame

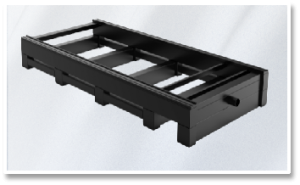

Reinforced high-rigidity welded frame of KCA economy fiber laser cutting machine
Engineered with an integrated molding design for critical stress-bearing components. This monolithic structure significantly enhances overall machine stiffness and minimizes mechanical deformation, ensuring long-term cutting accuracy even under high-speed dynamics.
2 Seamless System Synchronization

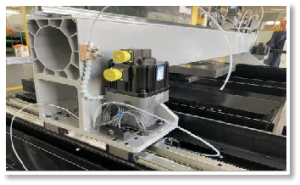

Seamless system synchronization drive of KCA economy fiber laser cutting machine
Featuring a logically optimized layout of core components, the machine achieves perfect harmony between transmission units and execution mechanisms. This superior synchronization results in fluid motion control, reduced vibration, and faster response times.
3 Integrated Streamlined Architecture

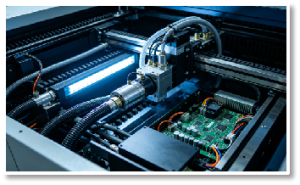

Integrated streamlined architecture of KCA economy fiber laser cutting machine
The highly integrated layout of pneumatic and electrical systems reduces unnecessary connectors and adapters. This streamlined internal architecture ensures stable fluid dynamics and circuit reliability, significantly lowering the risk of component failure and simplifying maintenance.
4 Advanced High-Precision Laser Head

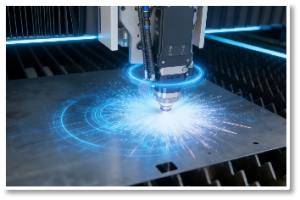

High-precision laser head of KCA economy fiber laser cutting machine cutting sheet metal
Equipped with a cutting-edge laser head for ultra-precise focusing and superior beam quality. It delivers high-speed, high-accuracy results with a minimal Heat-Affected Zone (HAZ) and burr-free edges, making it versatile enough to handle various material thicknesses with ease.

TECHNICAL PARAMETER

Machine Model KCA3015 KCA4020
Working Area 3000mm*1500mm 4000mm*2000mm
Laser Power 1500W/3000W/6000W 1500W/3000W/6000W
X/Y axis positioning accurary ±0.05mm ±0.05mm
X/Y axis repeat positioning accurary ±0.03mm ±0.03mm
Maximum Linkage Positioning Speed 110m/min 110m/min
Maximum Acceleration 0.8G 0.8G
Power Rated Voltage and Frequency 380V/50Hz 380V/50Hz
Suitable Industries: Small manufacturing workshops, metal art, HVAC, auto repair shops, small sheet metal job shops.
Application Scenarios: Entry-level laser cutting; cost-effective small-batch production; multi-variety flexible processing; startup and small factory applications.

FAQ

Q: What thickness can the KCA series cut?
A: With a 6000W source the recommended range is 1-16mm carbon steel and 1-8mm stainless steel.. See the cutting thickness table above.

Q: What is the difference between the KCA economy series and the KC standard series?
A: The KCA economy series delivers ±0.05mm positioning accuracy at a lower price, while the KC standard series reaches ±0.03mm. Both offer 1.5kW to 6kW laser power.

Q: What working table sizes are available?
A: 3000 × 1500 mm (KCA3015) and 4000 × 2000 mm (KCA4020).

Q: What is the maximum cutting speed?
A: 110 m/min maximum linkage positioning speed with 0.8G acceleration.

Q: What is the price?
A: Depends on model and laser power. Contact us for an exact quote within 24 hours.

Q: What is the delivery time?
A: Normally 30-40 days after deposit, including a spare parts kit and operation training.

Q: Can you customize the voltage?
A: Yes. 380V/50Hz is standard; other configurations are available for overseas markets.

Q: Can I test my material before purchasing?
A: Yes. Contact KAFE CNC with your material type, thickness and cutting requirements to arrange a sample cutting test.

Q: How can I choose the right laser power?
A: Laser power depends on material, thickness, required cut quality and production efficiency. KAFE CNC can recommend a suitable configuration.
