Four-Chuck Tube Laser Cutting Machine

Short Description:

The four-chuck tube laser cutting machine handles large-diameter, heavy-wall pipe that two- and three-chuck machines cannot. Four chucks with a servo-driven movable front chuck hold a bar of up to 12.5 m and 2000 kg, and the cutting head works between the front and rear chucks, so long heavy workpieces are cut without the far end drifting. Tailings stay at 20-70 mm, which matters when the tube itself is expensive.

One model, KCT12055T4, clamps round pipe from Φ40-550 mm and square tube from □40-540 mm with 550 mm pneumatic chucks, powered by a 3000W, 6000W or 12000W fiber laser. The machine is built for large pipe engineering, petroleum equipment, marine piping and heavy steel structures, and an optional 2-3 m unloading rack supports finished parts as they leave the machine.

  • High speed & high productivity
  • Servo movable chuck for long tube precision
  • Ultra-short tailings, high material yield
  •  Auto-loading & stable unloading support


Which Tube Laser Cutting Machine Do I Need?

Machine seriesRound / square tube rangeMax cutting lengthTypical use
Small tube (KCT3 / KCT6)Φ3-80 / □3-80 mm3000 / 6500 mmSmall-diameter thin-wall tube for furniture, medical and lighting parts
Two-chuck (KCT6 / KCT9)Φ10-350 / □10-350 mm6500 / 9500 mmStandard tube production and best value for regular tube lengths
Three-chuck (KCT6036T3 / KCT9036T3)Φ20-350 / □20-350 mm6500 / 9500 mmBatch work with 20-70 mm tailings instead of full clamping stubs
Four-chuck (KCT12055T4)Φ40-550 / □40-540 mm12500 mmHeavy large-diameter pipe up to 2000 kg per tube

Comparison based on the standard configuration of each tube laser series. The ranges shown are maximum clamping capacity — tell us your tube size, wall thickness and bar length and we will confirm the right series.

1High-Speed Performance & Superior Productivity

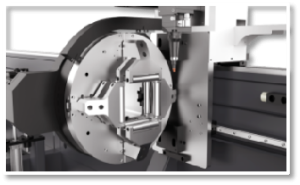

550 mm pneumatic chuck with clamping jaws and the fiber laser cutting head on the four-chuck tube laser cutting machine



Engineered for maximum output, featuring peak acceleration of 2.0G, a rapid traverse speed of 150m/min, and chuck rotation speeds up to 200 RPM. These industry-leading specs dramatically reduce cycle times, providing a powerful boost to your overall production capacity



2Servo-Driven Movable Front Chuck

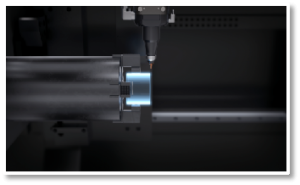

Fiber laser cutting head cutting a square tube between the chucks of the four-chuck tube cutter



Utilizing precision servo-control, the front chuck is movable, allowing the laser head to cut positioned between the front and rear chucks. This unique configuration ensures uncompromising accuracy for long workpieces and maintains consistent, high-end product quality for your most demanding projects.



3Ultra-Short Tailings for Maximum Material Yield

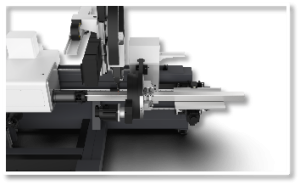

Side view of the four-chuck tube laser cutting machine with multiple chucks supporting a long tube



Achieve ultra-short remnants of only 20mm–70mm (depending on material), significantly increasing your material utilization rate. By minimizing scrap and extracting maximum value from every tube, this feature provides a direct path to cost reduction and sustainable high-efficiency manufacturing.



4Extended Unloading Support (Optional)

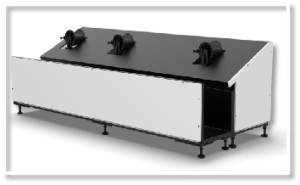

Optional unloading rack with roller supports for long finished tubes on the four-chuck tube laser cutting machine



In conjunction with the movable front chuck, an optional 2-3 meter unloading rack is available. This ensures stable support and smooth discharge for extra-long finished parts, preventing material damage and streamlining the post-cutting process.





TECHNICAL PARAMETERS

Machine Model KCT12055T4
Clamping Range Round Pipe    Φ40-550mm        Square Pipe  □40-540mm
Laser Power 3000W/6000W/12000W
Max. Rotational Speed 30r/min
Eff. Tube Cutting Length 12500mm
Max. Single Tube Load Cap. 2000kg
Chuck Structure 550 Pneumatic Chuck
Rated Volt. & Freq. 3PH 380V 50Hz





Suitable Industries: Large pipe engineering, petroleum equipment, marine piping, heavy steel structure





Application Scenarios: Super-large diameter pipe; ultra-heavy load; long pipe high-efficiency cutting.

FAQ

Q: What is a four-chuck tube laser cutting machine?
A: Four chucks support one tube along its length, and the front chuck is servo-driven and movable, so the cutting head works between the front and rear chucks. This configuration is built for large-diameter, heavy-wall pipe that has to be held at several points.

Q: What is the maximum tube size?
A: Round pipe from Φ40-550 mm and square or rectangular tube from □40-540 mm, clamped by 550 mm pneumatic chucks.

Q: How heavy a tube can it load?
A: Up to 2000 kg per tube, with an effective cutting length of 12500 mm.

Q: Why four chucks instead of two or three?
A: A 12.5 m heavy pipe has to be supported at several points, otherwise it sags and drifts as it rotates. Four chucks hold the bar along its full length, and because the front chuck moves, the cut stays close to a clamp instead of hanging out at the far end of the tube.

Q: How much material is left at the end of the bar?
A: 20-70 mm depending on material, which keeps material yield high on large, expensive pipe.

Q: What laser power is available?
A: 3000W, 6000W and 12000W. Thick-wall large pipe needs more power for a clean edge at production speed — send your tube diameter, wall thickness and required output and we will recommend the power.

Q: Can it cut square and rectangular tube as well as round pipe?
A: Yes. The 550 mm chucks clamp round pipe Φ40-550 mm and square or rectangular tube □40-540 mm.

Q: How are long finished parts unloaded?
A: An optional 2-3 m unloading rack works together with the movable front chuck to support heavy finished parts as they leave the machine, preventing damage and keeping the workflow continuous.

Q: What is the price and delivery time, and can I test a sample?
A: Price depends on laser power and options such as the unloading rack. Delivery is normally 30-40 days after deposit. Send your pipe size, wall thickness and drawings and we will arrange a sample cutting test.
