Compact Tube Laser Cutting Machine

Short Description:

The compact tube laser cutting machine is built for small-diameter and thin-wall tube that general-purpose tube cutters cannot hold steadily. Fully enclosed pneumatic chucks keep dust out of the clamping mechanism and hold the tube within ±0.1 mm, while the servo-driven movable front chuck lets the cutting head work between the front and rear chucks, so short parts and long thin-wall sections are cut to the same accuracy.

Two models cover the range: KCT3 clamps round tube from Φ3-25 mm and square tube from □3-23 mm on a 3000 mm bed at 300 r/min, and KCT6 clamps round and square tube up to 80 mm on a 6500 mm bed at 200 r/min. Both run a 1500W fiber laser, with 3000W available on KCT6, and an optional semi-automatic loading system stages up to 6 tubes at a time. Typical applications are medical devices, furniture fittings, lighting, electronics and small pipe assemblies.

  • Special high-precision chucks for small tubes
  • High-rigidity bed, stable & durable
  • Dust-proof, compact & reliable
  • Optional semi-auto loading


Tube Diameter and Laser Power Selection Guide

Round / square tube sizeModelLaser powerCutting lengthMax rotation speed
Φ3-25 / □3-23 mmKCT31500W3000 mm300 r/min
Φ3-80 / □3-80 mmKCT61500W / 3000W6500 mm200 r/min

Selection guide based on the technical parameter table. KCT3 covers tube down to Φ3 mm on a 3 m bed, while KCT6 extends the range to Φ80 mm and 6.5 m bars with an optional 3000W laser. Tell us your tube diameter, wall thickness and daily output and we will confirm the model and laser power.

1Ultra-Precision Specialized Chucks

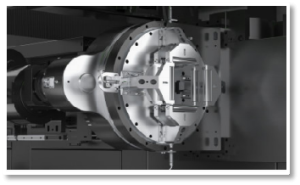

Fully enclosed pneumatic chuck with clamping jaws for small-diameter tube on the compact tube laser cutting machine
Specifically engineered for small-diameter tubes, these high-precision chucks feature a fully enclosed structure for superior dust resistance. With a clamping accuracy maintained within ±0.1mm, the system ensures exceptional stability, reliability, and versatile compatibility for delicate workpieces.
2High-Rigidity Heavy-Duty Bed

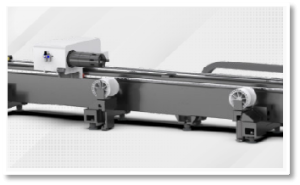

High-rigidity gantry-milled machine bed of the compact tube laser cutting machine
The machine bed undergoes rigorous gantry milling and precision finishing to maximize its anti-vibration, anti-torsion, and anti-deformation capabilities. This superior structural integrity significantly extends the machine's service life and ensures unwavering reliability during continuous, high-intensity operations.
3Semi-Automatic Auxiliary Loading System (Optional)

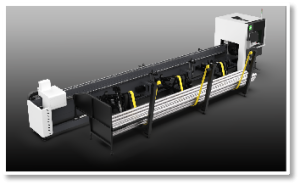

Semi-automatic auxiliary loading system staging tubes on the small tube laser cutter bed
Our auxiliary loading system is highly adaptable to various material specifications and lengths. Capable of staging up to 6 tubes at once, it significantly enhances loading efficiency and workflow continuity while reducing manual intervention and repetitive labor.
4Advanced Servo-Driven Movable Front Chuck

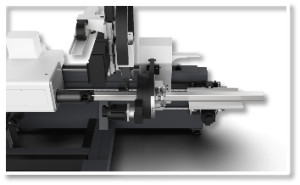

Servo-driven movable front chuck with the laser head cutting a square tube between chucks
Featuring a precision servo-controlled movable front chuck, allowing the laser head to cut between the front and rear chucks. This advanced configuration ensures maximum precision for long workpieces, delivering consistent, high-end product quality that meets the most demanding industrial standards.

TECHNICAL PARAMETERS

Machine Model KCT3 KCT6
Clamping Range Round Pipe             Φ3-25mm                                Square Pipe             □3-23mm           Round Pipe       Φ3-80mm                            Square Pipe        □3-80mm
Laser Power 1500W 1500W/3000W
Max. Rotational Speed 300r/min 200r/min
Eff. Tube Cutting Length 3000mm 6500mm
Chuck Structure 30 Pneumatic Chuck 80 Pneumatic Chuck
Rated Volt. & Freq. 3PH 380V 50Hz 3PH 380V 50Hz





Suitable Industries: Medical devices, furniture fittings, lighting, electronics, small pipe assembly





Application Scenarios: Micro-tube precision cutting; small-diameter thin-wall pipe; high-speed stable processing.





FAQ

Q: What is a compact tube laser cutting machine?
A: It is a fiber laser tube cutter built around small-diameter and thin-wall tube. Fully enclosed pneumatic chucks hold the workpiece to ±0.1 mm, and the servo-driven movable front chuck lets the cutting head work between the front and rear chucks, so short, thin parts are cut without deformation.

Q: What is the smallest tube it can cut?
A: KCT3 cuts round tube from Φ3-25 mm and square tube from □3-23 mm on a 3000 mm bed, which covers micro-tube precision cutting and small-diameter thin-wall pipe.

Q: Which model should I choose, KCT3 or KCT6?
A: Choose by tube size and bar length. KCT3 handles Φ3-25 mm round tube and □3-23 mm square tube up to 3000 mm; KCT6 extends the range to Φ3-80 mm round and □3-80 mm square tube up to 6500 mm, and adds the 3000W laser option.

Q: What laser power is available?
A: KCT3 runs a 1500W fiber laser; KCT6 is available with 1500W or 3000W. Thin-wall tube needs less power to avoid burning through, while 3000W raises speed on thicker wall or high daily output. Send us your tube size and wall thickness and we will confirm the power.

Q: Why does a small tube cutter need special chucks?
A: Small-diameter tube deflects easily under clamping force. The fully enclosed chuck structure keeps dust out of the mechanism and holds the tube within ±0.1 mm, so thin-wall parts are cut without crushing or slipping.

Q: Can it cut long thin-wall tube without bending?
A: Yes. The servo-driven front chuck moves along the bed, so the cutting head always works between the front and rear chucks instead of at the free end of the tube. Combined with the gantry-milled, high-rigidity bed, a 6.5 m thin-wall bar stays supported throughout the cut.

Q: Is automatic loading available?
A: An optional semi-automatic auxiliary loading system adapts to different material specifications and lengths and stages up to 6 tubes at a time, which reduces manual handling on batch work.

Q: What industries use this machine?
A: Medical devices, furniture fittings, lighting, electronics and small pipe assembly — typically micro-tube precision cutting, small-diameter thin-wall pipe and high-speed stable processing.

Q: What is the price and delivery time, and can I test my tube?
A: Price depends on model, laser power and options such as the loading system. Delivery is normally 30-40 days after deposit. Send your tube size, wall thickness and cut drawings and we will arrange a sample cutting test.
