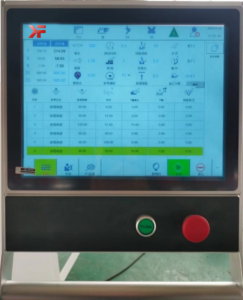

1.CNC System
This control system features a simple and clear user interface and direct programming capabilities, which are most convenient for simple bending operations. You only need to input parameters such as the rear gear and angle for each process to complete the bending process.

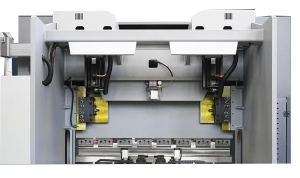

2.Dual servo main motor control
The all-alectric servo press brake adopts the principle of dual servos, and the Y1 and Y2 axes are controlled by powerful SYNTEC servo motors.
This design achieves the highest speed and precision and ensures extremely low operating costs.

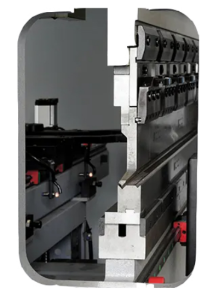

3.Mold options to match various bending
A variety of molds can be selected to adapt to the production of various workpieces, so that the bending angle of the bending machine is more accurate and the work efficiency is higher.

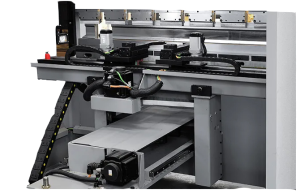

4.Axis Precision Fast Backgauge
High-precision four-axis back gauge is adopted. It is driven by servo motor, ball screw and linear guide to ensure high-precision operation. Beam height is adjusted by CNC.
| CNC Press Brake Technical Parameters Table | ||
| NO. | Parameter Name | Parameter Value |
| 1 | Bending Force | 400 KN |
| 2 | Table Length | 1250 mm |
| 3 | Column Spacing | 970 mm |
| 4 | Bed Mechanism | C-type |
| 5 | Slide Stroke | 200 mm |
| 6 | Throat Depth | 330 mm |
| 7 | Maximum Slide Opening Height | 500 mm |
| 8 | Idle Speed | 200 mm/sec |
| 9 | Working Speed | 40 mm/sec |
| 10 | Return Speed | 200 mm/sec |
| 11 | Back Gauge X-axis Stroke | 400 mm |
| 12 | Number of Control Axes | Y1, Y2, X, R, Z1, Z2 |
| 13 | Y-axis Motor Power | 11KW × 2 |
| 14 | Instantaneous Power During Feed | 15 KW |
| 15 | Overall Dimensions (L×W×H) | 1340 × 1310 × 2170 mm |
| 16 | Machine Weight | 2.8 T |
