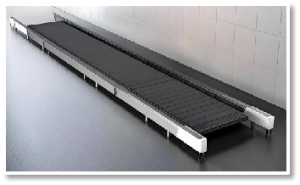

1Ultra-Long Workspace with Seamless Scalability
The ground-track system can be extended up to 12 to 60 meters (and beyond) to accommodate oversizees. Itsd workpiec modular rail design allows for cost-effective, on-site length extensions in the future, providing maximum flexibility as your production requirements grow.

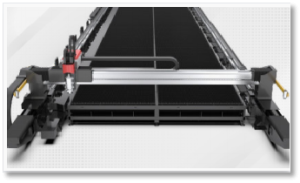

2High-Dynamic Gantry for Rapid Throughpu
Engineered for high-speed reciprocating movement, the gantry traverses the ground rails with exceptional idle speeds. This minimizes non-cutting cycle times and significantly boosts processing efficiency, making it the ideal solution for high-volume, long-format component production.

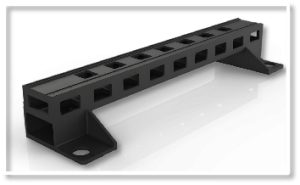

3Lightweight Integrated Beam with Dual-Drive Synergy
Our high-strength, low-inertia integrated beam minimizes vibration and inertial impact during high-speed maneuvers. Combined with a dual-motor synchronous drive system, it ensures perfectly balanced power delivery and ultra-precise positioning across the entire travel length, delivering superior cutting consistency

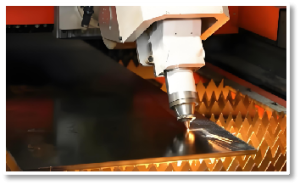

4Optional 3D Beveling System for Welding Prep
Upgradeable with a professional 3D cutting head supporting ±45° multi- angle tilting. Complete V, X, Y, and K-shaped beveling in a single pass, eliminating the need for secondary grinding. It is the ultimate tool for high-e fficiency welding preparation on thick plates.
|
TECHNICAL PARAMETERS |
||||||
| Machine Model | KC8025 | KC12025 | KC13032 | KC16032 | KC24032 | KC34032 |
| Working Area | 8000mm*2500mm | 12000mm*2500mm | 13000mm*3200mm | 16000mm*3200mm | 24000mm*3200mm | 34000mm*3200mm |
| Laser Power | 3000W/6000W/120000W/20000W | 6000W/120000W/20000W/30000W | 6000W/120000W/20000W/30000W | 120000W/20000W/30000W | 120000W/20000W/30000W/40000W | 6000W/120000W/20000W/30000W/40000W |
| X/Y Pos. Accuracy | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm |
| X/Y Rep. Pos. Accuracy | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm |
| Max. Linkage Pos. Speed | 110m/min | 110m/min | 110m/min | 110m/min | 110m/min | 110m/min |
| Max. Acceleration | 1.5G | 1.5G | 1.5G | 1.5G | 1.5G | 1.5G |
| Rated Volt. & Freq. | 3PH 380V 50Hz | 3PH 380V 50Hz | 3PH 380V 50Hz | 3PH 380V 50Hz | 3PH 380V 50Hz | 3PH 380V 50Hz |
Suitable Industries Shipbuilding, wind power, steel structure, railway, bridge engineering, large machinery, pressure vessels
Application Scenarios Extra-large sheet cutting; long-profile heavy plate processing; extendable bed; high-power 20kW–40kW; on-site customized length.
