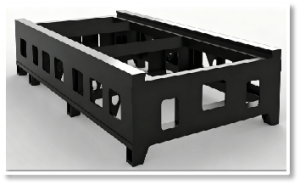

1Robust High-Strength Architecture
The combination of dual-bus servo motors and a high-rigidity crossbeam dramatically enhances anti-vibration performance. This setup provides a reliable, high-torque power source for continuous, heavy-duty cutting operations without compromising stability.

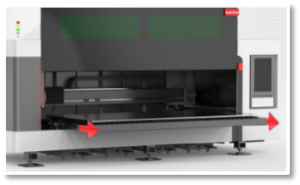

2Ergonomic Drawer-Type Worktable
Featuring an intuitive drawer-style table design, this system simplifies loading and unloading, significantly reducing labor intensity and cycle times. It is the ideal solution for businesses transitioning toward smart, automated production workflows.

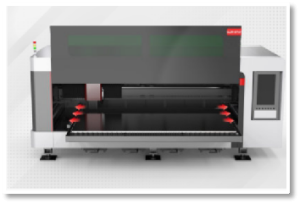

3Smart Multi-Zone Dust Extraction System
Equipped with 8 to 30 automated high-suction extraction zones, ensuring smooth smoke exhaust and superior air purification. This eco-friendly, intelligent design maintains a clean and safe workspace while effectively lowering operational energy costs.

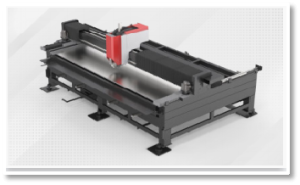

4High-Dynamic Optimized Crossbeam
Designed with a low center of gravity and a large cross-section, the beam enables rapid acceleration and maximized throughput per hour. Crafted from lightweight yet high-strength aerospace materials, it offers exceptional deformation resistance and maintains long-term mechanical precision.
|
TECHNICAL PARAMETERS |
|
| Machine Model | KC3015S |
| Working Area | 3000mm*1500mm |
| Laser Power | 1500W/3000W/6000W |
| X/Y Pos. Accuracy | ±0.03mm |
| X/Y Rep. Pos. Accuracy | ±0.02mm |
| Max. Linkage Pos. Speed | 110m/min |
| Max. Acceleration | 1.5G |
| Rated Volt. & Freq. | 3PH 380V 50Hz |
Suitable Industries Electrical enclosures, precision sheet metal, kitchenware, automotive accessories, clean workshops.
Application Scenarios Medium-batch stable processing; dust-controlled environment; semi-enclosed safe operation; easy loading and unloading.
