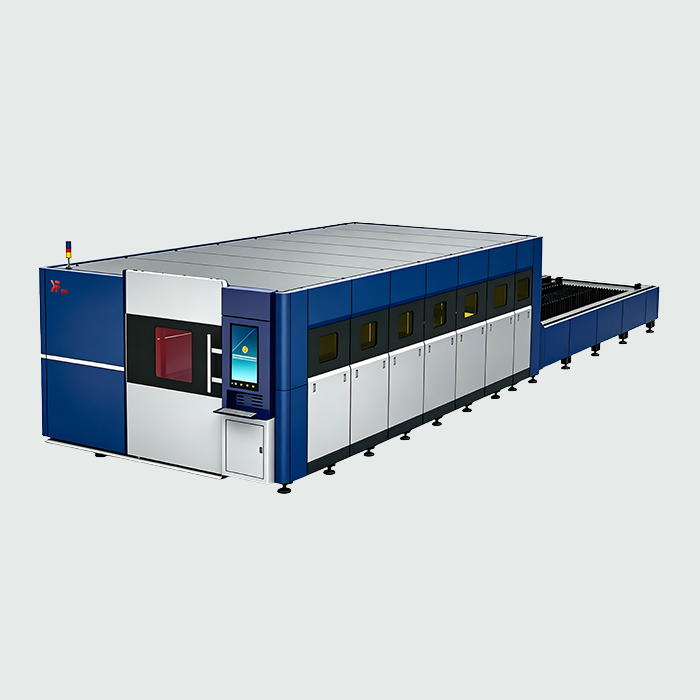

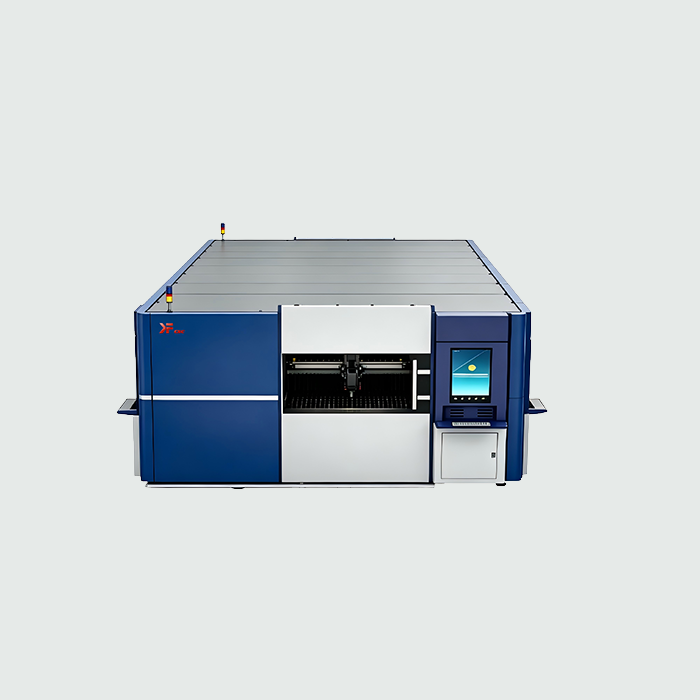

1Non-Stop Production with Dual-Station Exchange
Maximize your uptime with our high-speed pallet changer system. By enabling simultaneous cutting and loading/unloading, the machine eliminates standby time, dramatically boosting throughput to handle high-volume batch orders with ease.

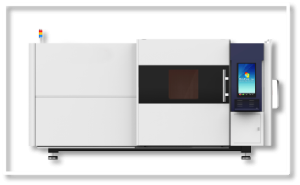

2Fully Enclosed Housing for Maximum Safety & Ecology
Engineered with a full-scale protective enclosure and an advanced filtration system. It effectively contains smoke, sparks, and laser radiation, ensuring a 100% safe workspace and a clean workshop environment that meets the strictest international environmental standards.

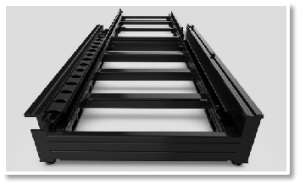

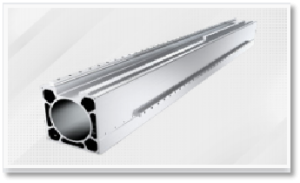

3Structural Integrity for Heavy-Duty Precision
The high-rigidity frame, paired with a low-center-of-gravity gantry, provides exceptional vibration damping and thermal stability. This ensures unwavering cutting precision over years of operation, even when tackling the most challenging thick-plate processing.

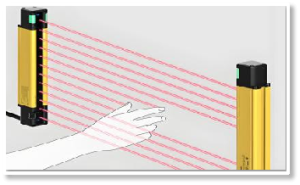

4Intelligent Safety & Maintenance Ecosystem
Standardized with safety light curtains, automated lubrication, and climate-controlled electronics. This smart monitoring suite minimizes human error, prevents collisions, and extends the machine’s lifecycle, delivering a truly low-cost-of-ownership experience.
|
TECHNICAL PARAMETERS |
||||||
| Machine Model | KC3015EC | KC4020EC | KC6020EC | KC6025EC | KC8025EC | KC12025EC |
| Working Area | 3000mm*1500mm | 4000mm*2000mm | 6000mm*2000mm | 6000mm*2500mm | 8000mm*2500mm | 12000mm*2500mm |
| Laser Power | 1500W/3000W/6000W/120000W | 1500W/3000W/6000W/120000W/20000W | 3000W/6000W/120000W/20000W | 3000W/6000W/120000W/20000W | 3000W/6000W/120000W/20000W | 6000W/120000W/20000W/30000W |
| X/Y Pos. Accuracy | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm |
| X/Y Rep. Pos. Accuracy | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm |
| Max. Linkage Pos. Speed | 110m/min | 110m/min | 110m/min | 110m/min | 110m/min | 110m/min |
| Max. Acceleration | 1.2G | 1.5G | 1.5G | 1.5G | 1.5G | 1.5G |
| Rated Volt. & Freq. | 3PH 380V 50Hz | 3PH 380V 50Hz | 3PH 380V 50Hz | 3PH 380V 50Hz | 3PH 380V 50Hz | 3PH 380V 50Hz |
Suitable Industries Electrical enclosures, precision sheet metal, kitchenware, automotive accessories, clean workshops.
Application Scenarios Medium-batch stable processing; dust-controlled environment; semi-enclosed safe operation; easy loading and unloading.
