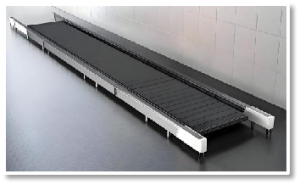

1Heavy-Duty Monolithic Load-Bearing Bed
Engineered with an integrated, all-welded steel structure, this bed is built to sustain continuous, ultra-heavy loads without deformation or structural sagging. It is the ideal foundation for processing large-section heavy profiles with rock-solid stability.

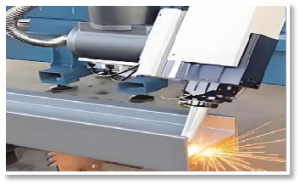

2One-Pass Beveling for Superior Efficiency
Supports high-precision V, Y, X, and K-shaped beveling in a single pass. By eliminating the need for secondary grinding before welding, it drastically simplifies the steel structure fabrication process and maximizes your operational throughput.
3High-Rigidity Long-Travel Frame
The all-welded, high-rigidity frame is designed to resist torsion and deformation over extended lengths. It ensures consistent, stable precision during long-distance cutting, guaranteeing perfect dimensional uniformity across the entire length of H-beams.

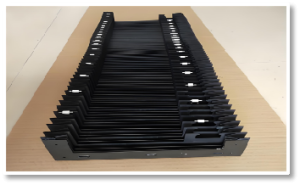

4Fully Enclosed Protection System
Featuring a comprehensive shield design for guide rails and racks to prevent the ingress of heavy profile dust and metal shavings. This proactive protection significantly reduces failure rates, extends the machine’s service life, and ensures reliable performance in harsh industrial environments.
|
TECHNICAL PARAMETER |
|
| Machine Model | KCH12010 |
| Working Area | 100*100-1000*5000mm |
| Laser Power | 12000W/20000W/3000W |
| X/Y Axis Distance | 2000mm/26000mm/1050mm |
| X/Y Axis Positioning Accurary | ±0.25mm |
| X/Y Axis Repeat Positioning Accurary | ±0.05mm |
| Maximum Linkage Positioning Speed | |
| Maximum Acceleration | 0.3G |
| Power Rated Voltage and Frequency | 380V/50Hz |
Suitable Industries Steel structure, construction, warehouse racking, tower cranes, bridge components, steel service centers
Application Scenarios H-beam / channel steel / angle steel cutting; one-time bevel cutting for welding preparation; structural profile processing.
