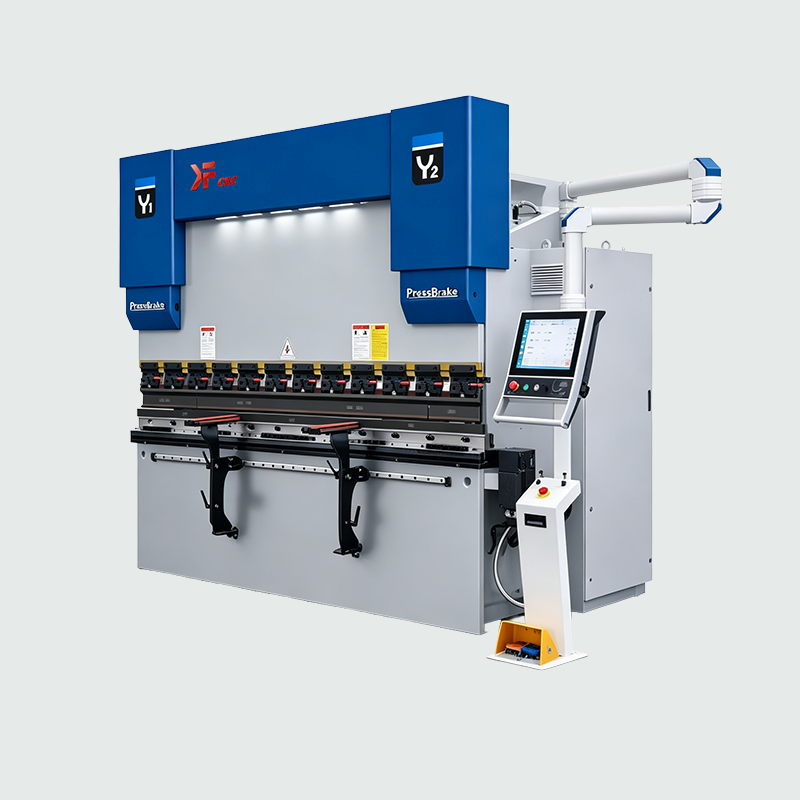

Torsion Bar CNC Press Brake(KTP)

Short Description:

Fob Price: US $0.5 - 9,999 / Piece

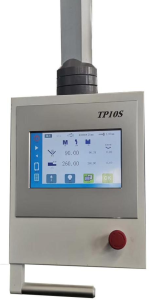

1.CNC Sysem

The TP10S is an economical 10-inch touchscreen CNC system for bending machines, driven by a CAN bus, offering high positioning accuracy and simple wiring. It automatically calculates the bending depth and unfolded dimensions simply by inputting the plate thickness and angle. It features built-in deflection and angle compensation, ensuring stable dimensional accuracy of processed profiles. Supporting multi-axis expansion and multi-step circular bending, it boasts a large program storage capacity, production statistics, multiple safety protections, and is easy to operate with high cost-effectiveness.

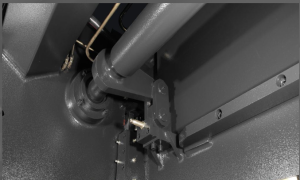

2.high-quality torsion shaft synchronous structure

The shaft body adopts the traditional forging and hammering process, with high strength, good elasticity, and adjustable design.

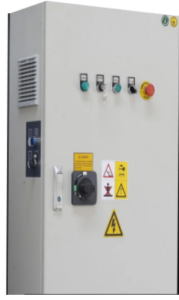

3.Electrical System

Open the door and cut off the power, high-quality servo motor driver, Schneider Electric components.

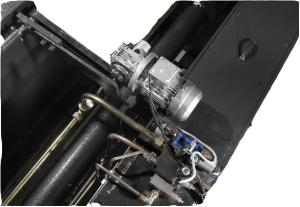

4.Hydraulic System

Using a top-tier domestic brand motor as the main power source, coupled with high-quality cylinders and premium components, the hydraulic power system is durable and long-lasting.

Type						Max Open	Power
	Nominal Force	Worktable Length	Poles Distance	Throat Depth	Slider Travel			Dimension

	（KN）	（mm）	（mm）	（mm）	（mm）	（mm）	（kw）	LxWxH(mm)
KTP40T/1600	400	1600	1200	200	100	320	5.5	1800x1200x1800
KTP40T/2000	400	2000	1600	200	100	320	5.5	2300x1280x2100
KTP50T/2500	500	2500	1900	200	100	320	5.5	2850x1800x2200
KTP63T/2500	630	2500	1960	250	120	345	5.5	2850x1800x2300
KTP63T/3200	630	3200	2600	250	120	345	5.5	3500x1800x2300
KTP80T/2500	800	2500	1960	250	120	350	5.5	2900x1800x2350
KTP80T/3200	800	3200	2600	250	120	350	5.5	3700x1800x2400
KTP80T/4000	800	4000	3200	250	120	350	5.5	4300x1800x2400
KTP100T/2500	1000	2500	1960	320	120	380	7.5	2900x1800x2450
KTP100T/3200	1000	3200	2600	320	120	380	7.5	3800x1800x2500
KTP100T/4000	1000	4000	3200	320	120	380	7.5	4400x1800x2500
KTP125T/2500	1250	2500	1960	320	120	380	7.5	3000x1800x2500
KTP125T/3200	1250	3200	2600	320	120	380	7.5	3800x1850x2500
KTP125T/4000	1250	4000	3200	320	120	380	7.5	4400x1850x2500
KTP160T/3200	1600	3200	2600	320	200	450	11	3900x1900x2650
KTP160T/4000	1600	4000	3200	320	200	450	11	4500x1900x2650
KTP160T/5000	1600	5000	4000	320	200	450	11	5500x2000x2700
KTP160T/6000	1600	6000	4800	320	200	450	11	6500x2000x3100
KTP200T/3200	2000	3200	2600	350	250	500	15	3900x2000x2650
KTP200T/4000	2000	4000	3200	350	250	500	15	4500x2000x2700
KTP200T/5000	2000	5000	4000	350	250	500	15	5500x2000x2700
KTP200T/6000	2000	6000	4800	350	250	500	15	6500x2000x2800
KTP250T/3200	2500	3200	2600	350	250	520	18.5	3900x2050x2850
KTP250T/4000	2500	4000	3200	350	250	520	18.5	4500x2050x2850
KTP250T/5000	2500	5000	4000	350	250	520	18.5	5500x2050x2850
KTP250T/6000	2500	6000	4800	400	250	520	18.5	6500x2150x2900
KTP300T/3200	3000	3200	2600	400	250	520	22	4000x2100x2980
KTP300T/4000	3000	4000	3200	400	250	520	22	4500x2100x2980
KTP300T/5000	3000	5000	4000	400	250	520	22	5500x2150x2980
KTP300T/6000	3000	6000	4800	400	250	520	22	6500x2150x2980
KTP400T/4000	4000	4000	3200	400	250	540	30	4500x2300x3450
KTP400T/5000	4000	5000	4000	400	250	540	30	5500x2300x3450
KTP400T/6000	4000	6000	4800	400	250	540	30	6500x2300x3500
KTP500T/4000	5000	4000	3200	400	300	620	37	4500x2450x3600
KTP500T/5000	5000	5000	4000	400	300	620	37	5500x2450x3600
KTP500T/6000	5000	6000	4800	400	300	620	37	6500x2500x3700
KTP600T/4000	6000	4000	3200	400	300	620	45	4500x2500x3700
KTP600T/6000	6000	6000	4800	400	300	620	45	6500x2600x3800
