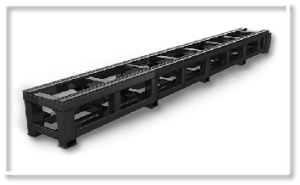

1Heavy-Duty Industrial-Grade Bed

Constructed from premium thick-walled steel tubes and plates, the frame undergoes a rigorous welding and heat-treatment process. This ensures maximum structural rigidity and zero deformation under long-term, high-intensity use, providing a rock-solid foundation for precision cutting.

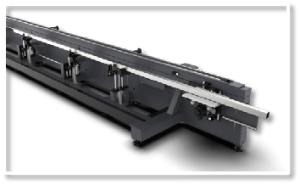

Featuring a dual-chuck configuration paired with intelligent and adaptive follow-up rollers. This system provides synchronized support that prevents pipe sagging or deviation during high-speed rotation, ensuring unmatched reliability and accuracy for continuous, heavy-duty production.

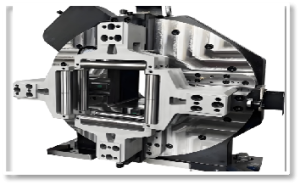

Utilizing advanced full-stroke pneumatic technology, our chucks offer powerful, automated clamping with a concentricity tolerance of < 0.1mm. This ensures stable material gripping throughout the entire cutting process, eliminating the need for manual adjustment and maximizing repeatability

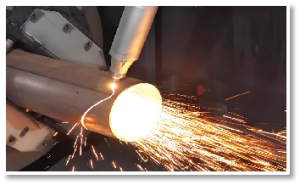

4Advanced 3D Beveling Capability (Optional)

Upgrade to a world-class specialized beveling head and control system. It supports V, X, Y, and K-shaped beveling with an adjustable angle of up to ±45°. This feature enables precision welding preparation in a single setup, drastically reducing secondary processing time for complex industrial applications.

TECHNICAL PARAMETERS
Machine Model	KCT6012T2	KCT6016T2	KCT6024T2	KCT6036T2	KCT9024T2	KCT9036T2
Clamping Range	Round Pipe               Φ10-110mm                            Square Pipe                  □10-110mm	Round Pipe               Φ10-150mm                            Square Pipe                  □10-150mm	Round Pipe               Φ20-230mm                            Square Pipe                  □20-230mm	Round Pipe               Φ20-230mm                            Square Pipe                  □20-230mm	Round Pipe               Φ20-230mm                            Square Pipe                  □20-230mm	Round Pipe               Φ20-350mm                            Square Pipe                  □20-350mm
Laser Power	1500W/3000W	1500W/3000W	1500W/3000W/6000W	1500W/3000W/6000W	3000W/6000W/120000W	3000W/6000W/120000W
Max. Rotational Speed	100r/min	100r/min	100r/min	100r/min	100r/min	100r/min
Eff. Tube Cutting Length	6500mm	6500mm	6500mm	6500mm	9500mm	9500mm
Max. Single Tube Load Cap.	80kg	80kg	80kg	80kg	300kg	500kg
Chuck Structure	120Pneumatic Chuck	160Pneumatic Chuck	240Pneumatic Chuck	360Pneumatic Chuck	240Pneumatic Chuck	360Pneumatic Chuck
Rated Volt. & Freq.	3PH 380V 50Hz	3PH 380V 50Hz	3PH 380V 50Hz	3PH 380V 50Hz	3PH 380V 50Hz	3PH 380V 50Hz

Suitable Industries Tube furniture, fitness equipment, automotive exhaust, agricultural machinery, pipe distribution, guardrails & scaffolding.

Application Scenarios Round/square tube cutting; holes, slots, arcs; short-run & mass pipe production
