1、Product advantages:
1.High-grade casting body
The core frame of the equipment is constructed from high-grade QT500-7 and gray iron 250 castings.
The entire machine is designed and manufactured according to high-precision machine tool standards. Both castings and welded components undergo rigorous stress relief treatment and are rigorously inspected using high-precision testing equipment to ensure long-term operational accuracy, stability, and high rigidity.

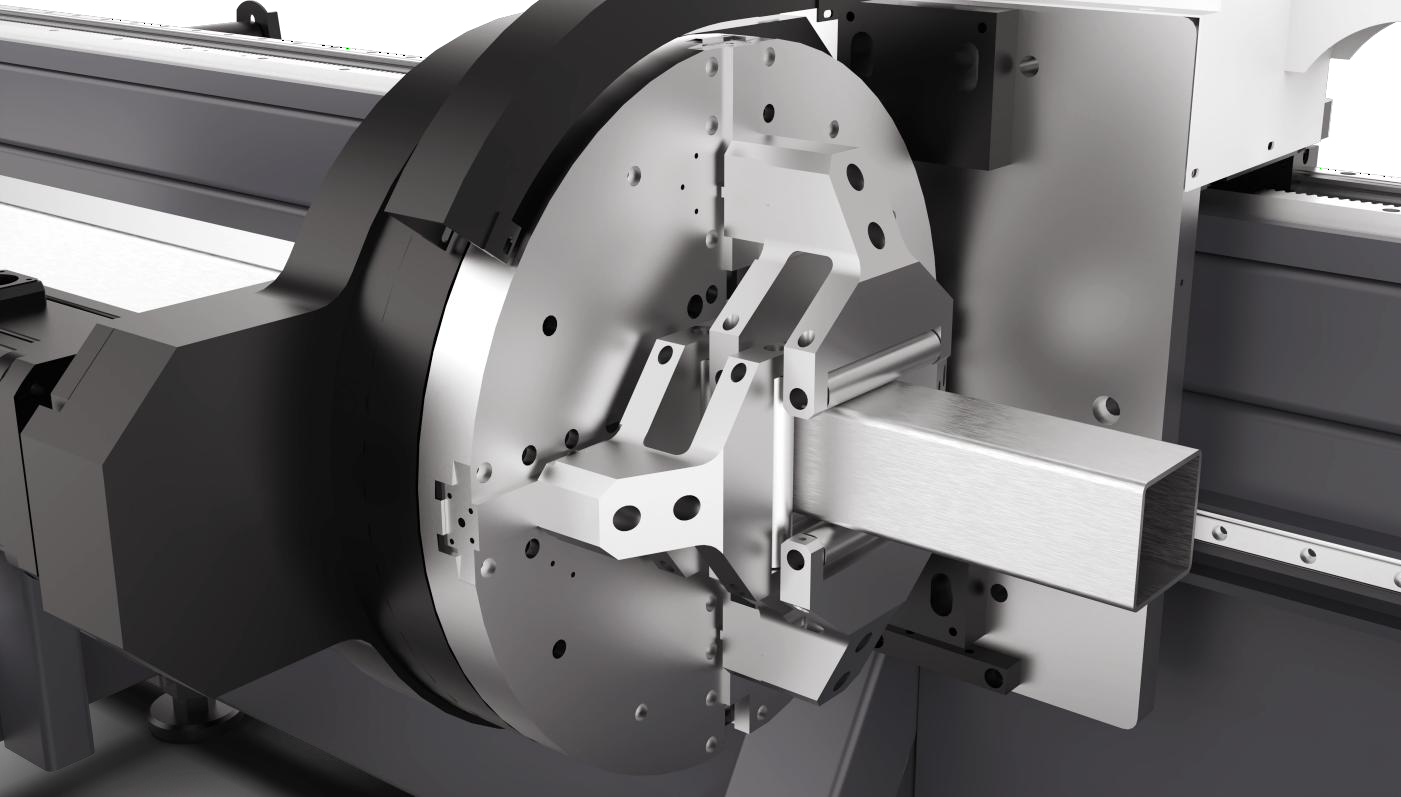

2.Precision chuck, high-speed anti-throw
Professional precision chuck, double roller cross clamping, strong clamping force, good sealing, high-speed cutting without slipping, effectively avoiding the swinging of pipes during cutting, ensuring accuracy under high-speed cutting.

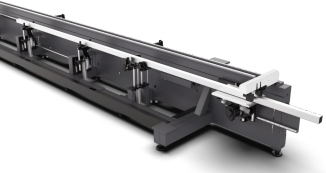

3.Dual-zone intelligent tracking, consistent stability
The loading area adopts roller follow-up support, the unloading area adopts flap follow-up support, and the servo intelligent control realizes dynamic support for the pipe throughout the process, ensuring the stable processing accuracy of the pipe.

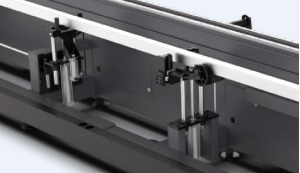

4.Full coverage, continuous improvement
The dual support system of follow-up support + concave wheel support effectively suppresses the radial vibration and axial movement of the pipe during high-speed processing. It realizes the all-round dynamic and stable wrapping of the pipe and ensures the stability of pipe processing.

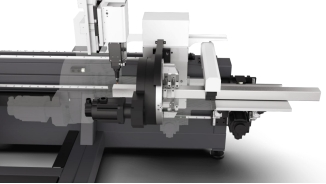

5.Front card displacement, strength upgrade
The front chuck is controlled by servo drive, and the laser head is placed between the front and rear chucks for cutting, thus ensuring the cutting accuracy of long workpieces and ensuring consistent product quality for customers.

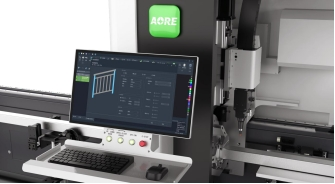

6.Intelligent drawing-free, one-click processing
Built-in drawing-free operating system, no need for manual drawing, just a few clicks to enter the corresponding parameters, the system automatically generates a three-dimensional model, which can be used for the guardrail industry, etc., to start efficient processing with one click!

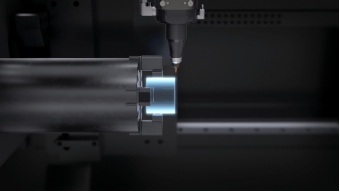

7.Extremely short tails, every millimeter counts
The shortest tail material is only 30mm, which greatly improves the comprehensive utilization rate of materials, effectively saves costs, reduces waste generation, maximizes the value of mining materials, and provides strong support for enterprises to reduce costs and increase efficiency.

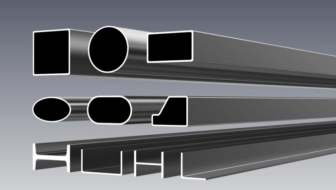

8.Efficient processing of various pipe materials
It can efficiently process a variety of pipes such as round pipes, square pipes, rectangular pipes, runway pipes, elliptical pipes, etc!
2、Technical Parameters：
| NO. | Type | K65 series |
| 1 | Maximum processing pipe length | 6500mm |
| 3 | Round pipe processing range | Φ8-120mm |
| 4 | Square and rectangular pipe processing range | 8*8-120*120mm |
| 5 | Positioning accuracy | ±0.05mm |
| 6 | Repeatability | ±0.03mm |
| 7 | Maximum operating speed (Y-axis) | 150m/min |
| 8 | Maximum acceleration (Y-axis) | 2G |
| 9 | Maximum chuck speed | 200r/min |
| 10 | Maximum single pipe weight | 80kg |
| 11 | Minimum tail length | ≥30mm |
| 13 | Machine dimensions | 9300 x2000x2200mm |
| 14 | Complete machine weight | 3750kg |
3、Product Configuration：
| No. | Name | Brand | Brand Origin |
| 1 | Fiber laser | Maxtron | China |
| 2 | Power | 3000W | China |
| 3 | Specialized laser cutting head | BLT310T | China |
| 4 | XY axis precision guide rails | Kofi | China |
| 5 | XY axis precision racks | Kofi | China |
| 6 | X and Y axis servo motors and drivers | China Inovance | China |
| 7 | Z axis servo motor and driver | China Inovance | China |
| 8 | Reducer | KOFON | China |
| 9 | Main electrical components | Schneider/Omron | France |
| 10 | Machine tool accessories | AORE | China |
| 11 | CNC system | Berchu 3000 Bus | China |
| 12 | Main pneumatic components | SMC | Japan |
| 13 | Precision chiller | Hanli Chiller | China |
| 14 | Dust extraction system | Equipment Support | China |
| 15 | Computer | Industrial Controller | China |
4、Application Industry

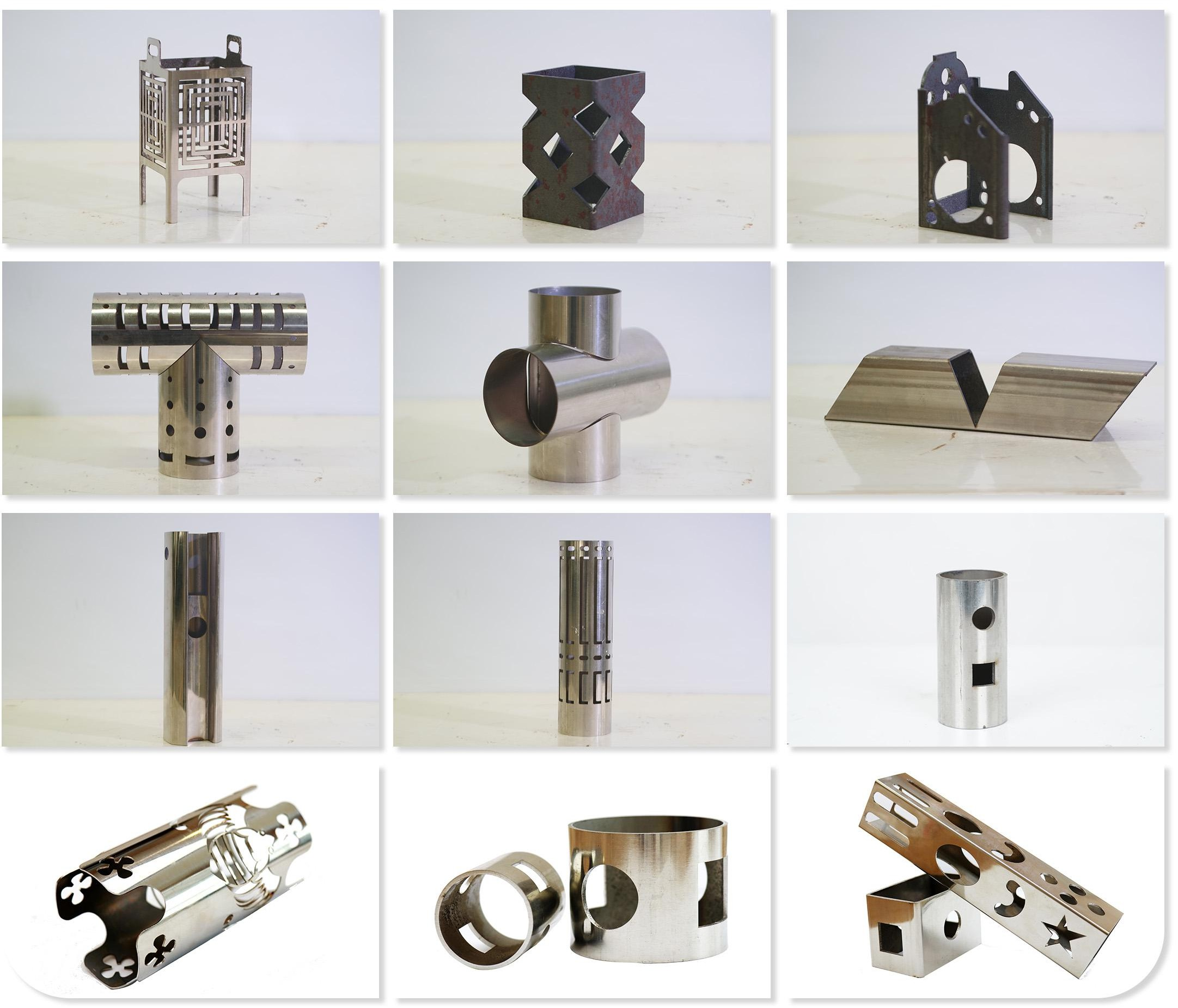

5、Finished Product Display:
