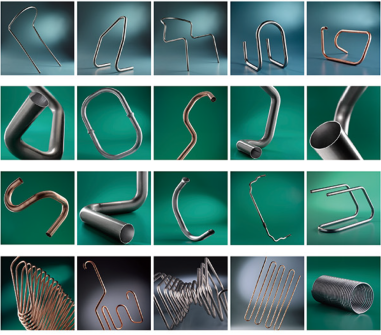

1、Finished pipe bending product display
2、Technical parameters:
| Machine Model | KEPB-DW-75CNC*2A-1S
KEPB-DW-75CNC*3A-1S |
KEPB-DW-89CNC*2A-1S
KaFe-DW-89CNC*3A-1S |
KEPB-DW-100CNC*2A-1S
KEPB-DW-100CNC*3A-1S |
KEPB-DW-114CNC*2A-1S
KEPV-DW-114CNC*3A-1S |
|
| Main Specifications | Φ75mm*4mm | Φ89mm*6mm | Φ100mm*8mm | Φ114mm*10mm | |
| Maximum Bend Amount * Wall Thickness (Carbon Steel) | R250mm | R250mm | R350mm | R350mm | |
| Maximum Bend Radius | R30mm | R30mm | R50mm | R50mm | |
| Minimum Bend Radius | 190° | 190° | 190° | 190° | |
| Maximum Bend Angle | 3000mm | 3000mm | 3000mm | 3000mm | |
| Maximum Feed Length | Direct delivery | Direct delivery | |||
| Working speed
Accuracy |
Bending speed | Max30°/s | Max30°/s | Max30°/s | Max30°/s |
| Tube rotation speed | Max160°/s | Max160°/s | Max160°/s | Max160°/s | |
| Feeding speed | Max800mm/s | Max800mm/s | Max800mm/s | Max800mm/s | |
| Working speed | Bending speed | ±0.1° | ±0.1° | ±0.1° | ±0.15° |
| Tube rotation speed | ±0.1° | ±0.1° | ±0.1° | ±0.1° | |
| Feeding speed | ±0.1mm | ±0.1mm | ±0.1mm | ±0.1mm | |
| Data input method | 1. Coordinates (XYZ) | 2. Work Value (YBC) | |||
| Bending method | Servo pipe bending | Servo pipe bending | Servo pipe bending | Servo pipe bending | |
| Tube rotation servo motor power | 1KW | 1.5K | 1.5KW | 2KW | |
| Feeding servo motor power | 1.5KW | 2KW | 3.5KW | 3.5KW | |
| Number of allowable elbows for pipe fittings | 12件/33件 | ||||
| Number of parts that can be stored | 330组/125组 | ||||
| Hydraulic motor power | 7.5KW | 11KW | 15KW | 22KW | |
| Maximum system pressure | 12Mpa | 14Mpa | 14Mpa | 14Mpa | |
| Machine weight | 4500KG | 5500KG | 6000KG | 7000KG | |
| Machine dimensions | 4950*1350*1230mm | 5090*1350*1230mm | 5090*1350*1230mm | 5090*1350*1230mm | |
3、Main configuration details:
| NO. | Name | Specifications | Origin |
| 1 | Hydraulic motor | 7.5KW | Wuxi Taihu |
| 2 | Hydraulic pump | PVL1-25 | Zhejiang Hongtai |
| 3 | Pressure holding valve | 03W | Taiwan Qiyang |
| 4 | Solenoid valve | G03-2C-DC24 | Taiwan Qiyang |
| 5 | Relief valve | 2B3B-D24 | Taiwan Qiyang |
| 6 | Seal ring | Taiwan CHO | |
| 7 | Pressure gauge | 0-25Mpa | Huatai |
| 8 | AC contactor | LCED1801 | Tai'an |
| 10 | Touch screen | 10寸 | Acme |
| 11 | Power switch | 24V | Meanwell |
| 12 | Angle servo motor | 750w | Mitsubishi Japan |
| 13 | Feed servo motor | 1.5kw | Mitsubishi Japan |
| 14 | Intelligent transformer | RP-3 | Shanghai Ruoping |
| 15 | Linear guide | 25*3600 | |
| 16 | Angle reducer | 1. SPL90-32
2. GPLF120-32 |
Hubei Planet |
| 17 | Feed reducer | ICM-880W2 | Acme |
| 18 | Central controller | RXM2MB | Tai'an |
| 19 | Relay | LR-16B | Tai'an |
| 20 | Thermal relay | 24V | Changde |
