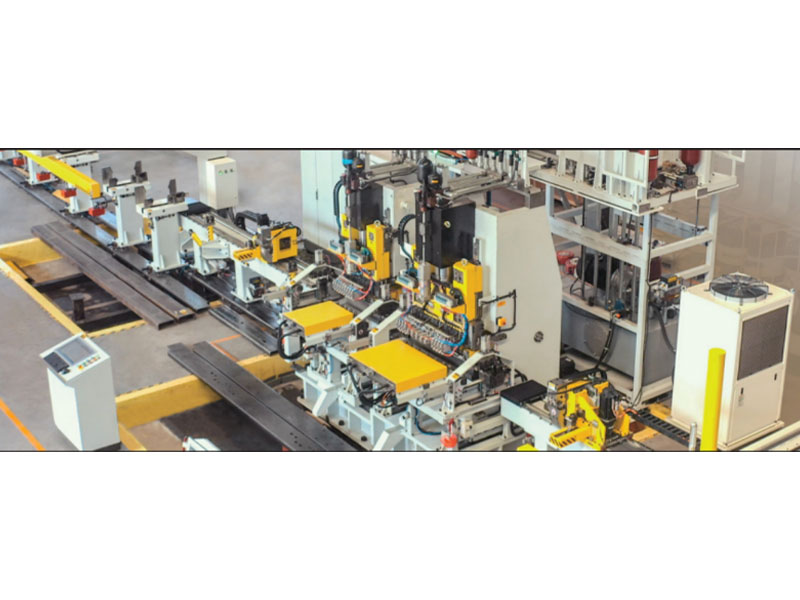

Automobile Longitudinal Beam Processing Equipment

Short Description:

Special design for truck U-beam manufacture, adopting German H+L hydraulic system.

It owns floating clamps to feed steel plate. The tool dead zone is small, it’s easy to disassemble. It has function of point punch.

The punch unit and important transmission components adopt automatic centralized lubrication. Automatic programming system automatically generates the processing program, which can be operated simply and owns complete functions.

Double channel processing is adopted when punching, with high processing efficiency.

It has auto-detection function when it processes leakage holes and when the tool is broken.

The complete and convenient maintenance is provided.

It can reduce the labor intensity of operators with the perfect processing device of scrap transport. It can make sure the mechanical integrity and personnel security with complete alarm information and alarm system.

Send email to us Download To PDF

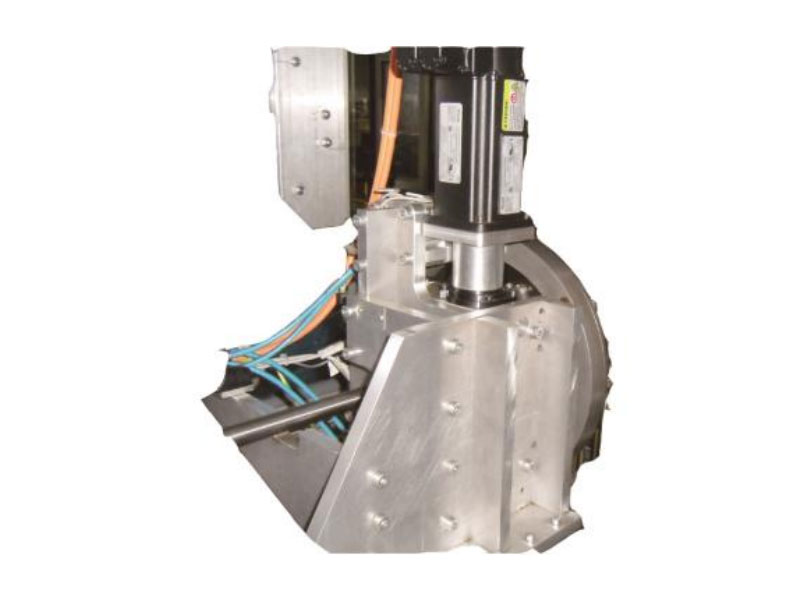

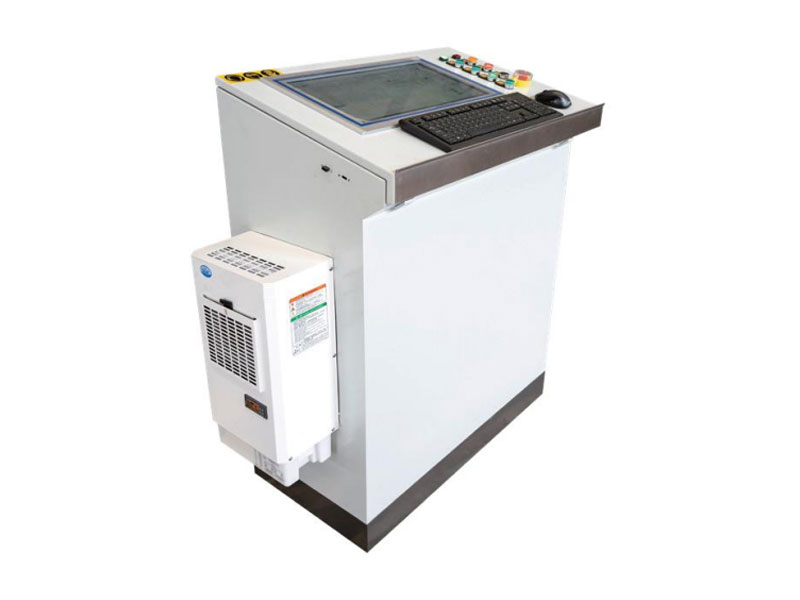

Beckhoff CNC system and Rexroth servo unit, full touch man-machine interface

Germany Balluf Sensor

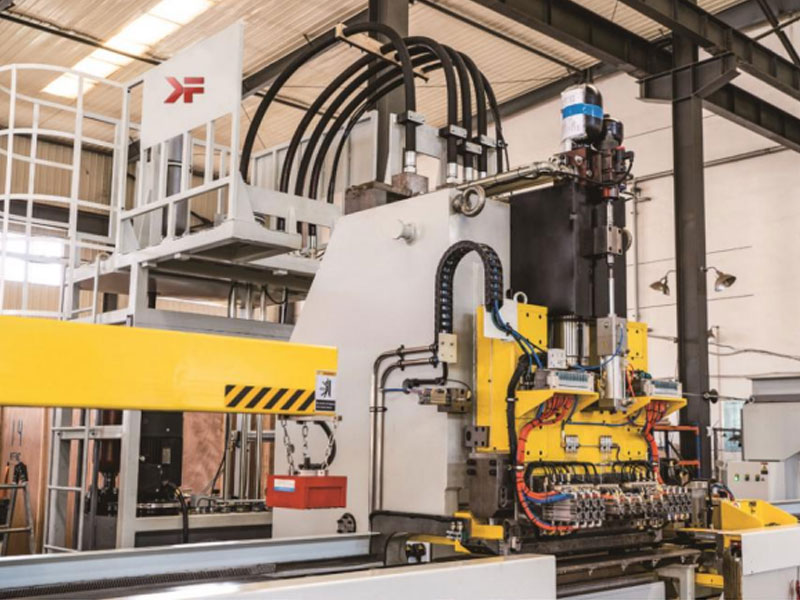

German H+L Hydraulic System

High precision linear guide/ball screw

Main Technical Specifications

NO.	Discription		Unit	Parameter
1	Nominal force		KN	1000	1000	2000	1000	1000
2	Max. sheet thickness		mm	12.7
3	Max.sheet size	Beam length	mm	13500
		Outside width	mm	365
		Flange height	mm	110
4	Max. one punching diameter		mm	φ 60
5	Number of tools		set	18	18	9	10	10
6	Punching efficiency		s/hole	0.85
7	Quantity of clamp		pc	3
8	X direction tolerance		mm	≤± 0.3	Distance of holes ≤ 400
			mm	≤± 0.5	Distance of holes ≤ 13500
9	Y direction tolerance		mm	≤± 0.3
10	Web hole to side tolerance		mm	≤± 0.5
11	Flange hole to side tolerance		mm	≤± 0.5
12	Hole to front edge of beam tolerance		mm	≤± 0.5
